Slim Surface Ceiling Light Fixtures

Halco 7" LED Slim Surface Mount Downlight Dimmable 14W Color Selectable TRIAC Dimming Wet Rated

SKU: 83898 | Ordering Code: DSK-7-CS-120V  | UPC: 807154838981

Halco Lighting 83898 DSK-7-CS-120V Halco 7" LED Slim Surface Mount Downlight Dimmable 14W Color Selectable TRIAC Dimming Wet Rated
Halco Lighting 83898 DSK-7-CS-120V Halco 7" LED Slim Surface Mount Downlight Dimmable 14W Color Selectable TRIAC Dimming Wet RatedHalco Lighting 83898 DSK-7-CS-120V Halco 7" LED Slim Surface Mount Downlight Dimmable 14W Color Selectable TRIAC Dimming Wet RatedHalco Lighting 83898 DSK-7-CS-120V Halco 7" LED Slim Surface Mount Downlight Dimmable 14W Color Selectable TRIAC Dimming Wet RatedHalco Lighting 83898 DSK-7-CS-120V Halco 7" LED Slim Surface Mount Downlight Dimmable 14W Color Selectable TRIAC Dimming Wet Rated
Printer friendly
  • Color
    Selectable
$20.99each
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Add 5 to your cart to get free ground shipping *

Options

Diameter (in)
5.50 7.00 9.00 12.00

Product Highlights

  • Energy efficient replacement for a conventional 75 watt bulb
  • Estimated life of 45.7 years based on 3 hours use per day
  • Adjustable color
Complete Your Solution

Subtotal: $300.93

Add 7 Items to Cart

Product Description–

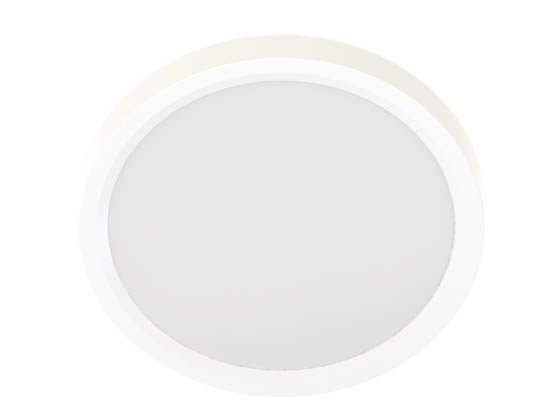

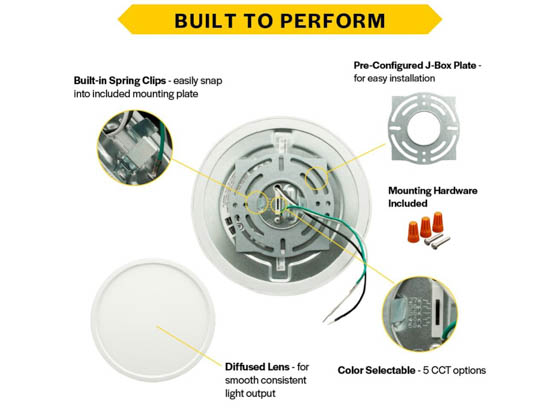

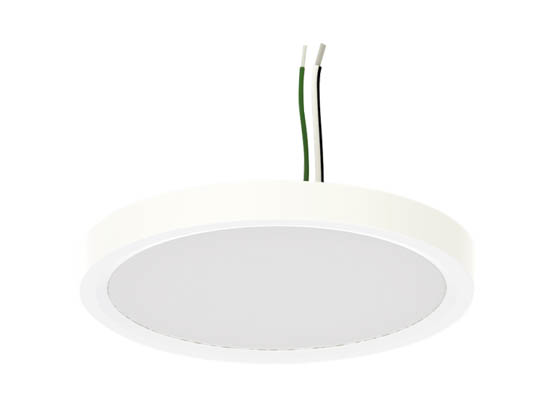

The Surface Mount Disk Series utilizes edge lit lighting technology for a low profile, sharp appearance. The round edge lit fixture offers an even light surface avoiding the hot spot of traditional backlit products. Perfect for commercial and residential applications that desire a higher end architectural appearance.

  • The thinnest surface mount option available at only 1.25" thick
  • Surface mounting fits any ceiling and solves the problem of limited plenum space

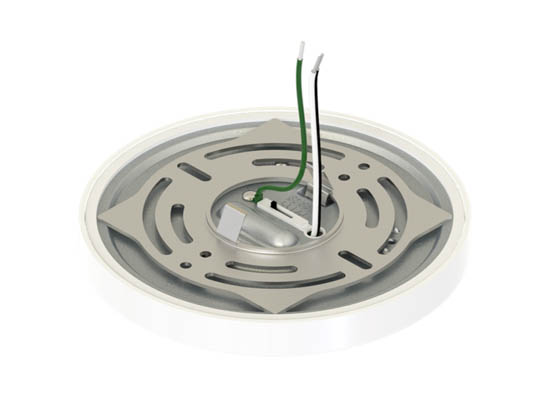

  • Easy to install on standard j-boxes 5" to 6"
  • White finish
    • Black, brushed nickel, brushed copper, & dark bronze available (sold separate)
  • Title 24 compliant
  • TRIAC dimming
  • Wet location rated
  • High quality 90+ CRI

Product Documents

Full Specs–

Brand

Halco Lighting

Model Number

DSK-7-CS-120V
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
14 Watts
Incandescent/Halogen Equivalent
The wattage value of an incandescent or halogen lamp of similar brightness.
75 Watts

Line Voltage

120
Base
The end (or ends) of the lamp that fits into the socket.
Wired
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
90
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
2700/3000/3500/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
2700
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
1150
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
50000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-4 to 104
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
1.25
Diameter (in)
Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.
7
Finish
The decorative finish of the item.
White

Mounting Position

Ceiling or wall
Installation Type
The way in which a fixture attaches to its relevant surface.
J-Box

Manufacturer Warranty

5 year limited
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Title 24 Compliant
California Building Energy Efficiency Standards for Residential and Non-Residential Buildings.
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
