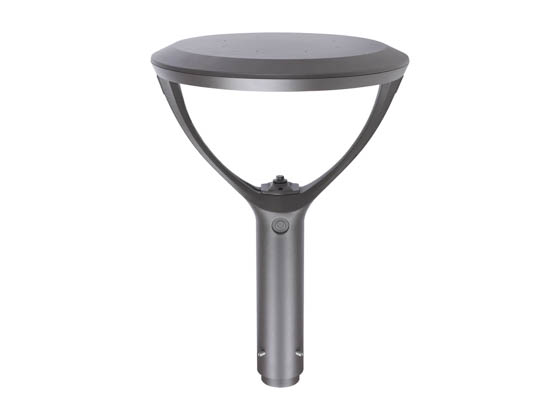

Sylvania LED Post Top Fixture - 50/80/100/130W 19,500LM T3/T4/T5 3-CCT Control Ready

SKU: 66964 | Ordering Code: POSTTOPVS130UNHD8SC2ADJBZP  | UPC: 046135669644

LEDVANCE 66964 POSTTOPVS130UNHD8SC2ADJBZP Sylvania LED Post Top Fixture - 50/80/100/130W 19,500LM T3/T4/T5 3-CCT Control Ready
LEDVANCE 66964 POSTTOPVS130UNHD8SC2ADJBZP Sylvania LED Post Top Fixture - 50/80/100/130W 19,500LM T3/T4/T5 3-CCT Control ReadyLEDVANCE 66964 POSTTOPVS130UNHD8SC2ADJBZP Sylvania LED Post Top Fixture - 50/80/100/130W 19,500LM T3/T4/T5 3-CCT Control Ready
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable
$369.99each
Fixture
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

Ships from SupplierUsually ships in 1-3 business days.

This item qualifies for free ground shipping *

Product Highlights

  • Energy efficient replacement for a 100/175/250/400 watt HID bulb
  • Estimated life of 45.7 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage

Complete Your Solution

Product Description

This Sylvania LEDvance commercial LED post top fixture is the most versatile on the market with the ability to field select 4 different wattage, 3 different color temperatures, and 3 different beam distributions. This fixture also includes a built-in on/off photocell and a control ready port for further control and energy savings. The selectable wattage can replace existing HID metal halide lamps of between 150-400W. Ideal for use in walkways, commercial business parks, campuses, golf courses, parks, and many more locations. The DLC Premium listing can qualify for additional savings via utility rebate programs.

  • 4-way wattage, 3-way color, & 3-way beam selectable switch
    • Color selectable (3000K/4000K/5000K)
    • Beam selectable (Type III / Type IV / Type V)
    • Wattage selectable
      • 50W 7,500 lumens
      • 80W 12,000 lumens
      • 100W 15,000 lumens
      • 130W 19,500 lumens
  • Integrated photocell which can be disabled in the field
  • Control ready port included
    • Microwave motion and daylight sensor 65622 (sold separate)
    • Programming remote 65623 (sold separate)
  • Adjustable settings with sensor 65622
    • Brightness 70/80/90/100% (default 100%)
    • Hold time 10s/1m/10m/30m (default 10min)
    • Occupancy sensitivity 20/50/75/100% (default 100%)
    • Stand-by dim level 0/10/20/30/50% (default 30%)
    • Stand-by time 1min/30min/60min/infinite (default 30min)
    • Daylight threshold 10lux/30lux/50lux/100lux/500lux/disable (default 50lux)
  • Includes 2 3/8" tenon mount
    • Wall, pendant, or surface mount available (sold separate)
  • Dark bronze die-cast aluminum housing
    • Available in black, white, and gray
  • IP65 wet location rated
  • 0-10v dimming
  • 120-347v (480v option available)
  • 5-year limited warranty

Product Documents

Full Specs

Brand

LEDVANCE

Model Number

POSTTOPVS130UNHD8SC2ADJBZP
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
50/80/100/130 Watts
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
100/175/250/400

Line Voltage

120-347
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3000/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3000
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
7500/12000/15000/19500
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
50000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-40 to 122
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
24.9
Diameter (in)
Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.
18
Finish
The decorative finish of the item.
Bronze
Light Direction
The primary direction in which a fixture directs its light, either up, down or ambient. In this context, ambient means that light is directed outwards into a room, as opposed to up at the ceiling or down at the floor.
Down

Manufacturer Warranty

5 year limited

Photocell

Yes
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Dusk to Dawn
Indicates that a lamp will self-activate when light levels dip below a certain level.
Yes
Adjustable Beam Angle
The fixture incorporates a mechanism to adjust the spread of the beam.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes

DLC Listing

S-14MKWN Premium
