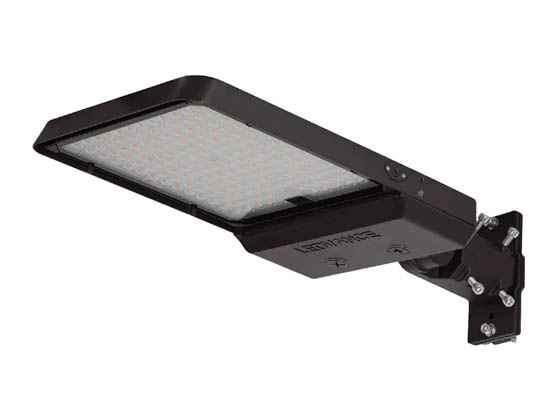

Sylvania Osram LEDvance LED Area Fixture Wattage (180/240/300W), Color, & Beam Adjustable Includes Control Ready Port, Arm, & Slipfitter Mount

SKU: 64014 | Ordering Code: AREAFLD6AS300UNHDSC2ADJBZ  | UPC: 046135640148

LEDVANCE 64014 AREAFLD6AS300UNHDSC2ADJBZ Sylvania Osram LEDvance LED Area Fixture Wattage (180/240/300W), Color, & Beam Adjustable Includes Control Ready Port, Arm, & Slipfitter Mount
LEDVANCE 64014 AREAFLD6AS300UNHDSC2ADJBZ Sylvania Osram LEDvance LED Area Fixture Wattage (180/240/300W), Color, & Beam Adjustable Includes Control Ready Port, Arm, & Slipfitter MountLEDVANCE 64014 AREAFLD6AS300UNHDSC2ADJBZ Sylvania Osram LEDvance LED Area Fixture Wattage (180/240/300W), Color, & Beam Adjustable Includes Control Ready Port, Arm, & Slipfitter MountLEDVANCE 64014 AREAFLD6AS300UNHDSC2ADJBZ Sylvania Osram LEDvance LED Area Fixture Wattage (180/240/300W), Color, & Beam Adjustable Includes Control Ready Port, Arm, & Slipfitter MountLEDVANCE 64014 AREAFLD6AS300UNHDSC2ADJBZ Sylvania Osram LEDvance LED Area Fixture Wattage (180/240/300W), Color, & Beam Adjustable Includes Control Ready Port, Arm, & Slipfitter Mount
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable
$389.99each
Fixture
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

Ships from SupplierUsually ships in 2-3 business days.

This item does not ship outside the US

This item qualifies for free ground shipping *

Options

Brightness (Lumens)
13500 18000 22500 27000 36000 45000

Product Highlights

  • Energy efficient replacement for a 400/750/1000 watt HID bulb
  • Estimated life of 91.3 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Complete Your Solution

Subtotal: $696.97

Add 3 Items to Cart

Product Description

Sylvania Osram LEDvance LED Area Fixture Wattage (180W/240W/300W), Color (3000K/4000K/5000K), and Beam Angle (Type III/IV/V) Selectable with Control Ready Port, Flexible Arm & Slipfitter Included. Tackle any project with

Show up to the job site with confidence. This area light mounts easily to existing poles using either of the two included mounts and can be customized on the spot with 27 performance settings.

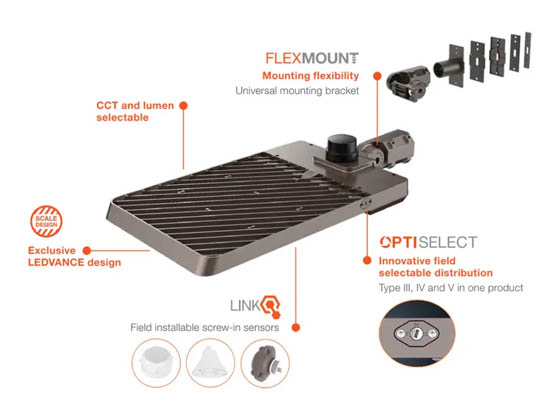

  • 3-way wattage, color, & beam angle
    • Wattage selectable (180W/240W/300W)
    • Color selectable (3000K/4000K/5000K)

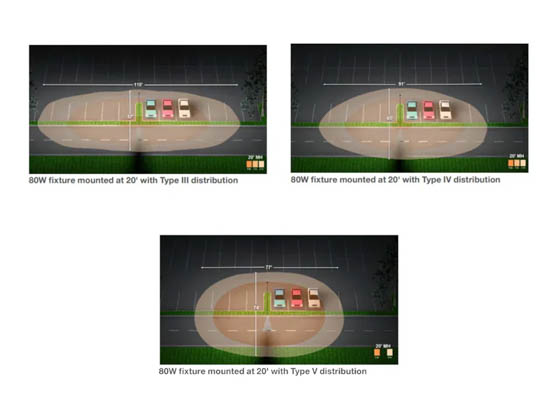

    • Beam Angle (Type 3, Type 4, & Type 5)
  • Easily switch wattage, color, & beam angle with a simple switch on the fixture

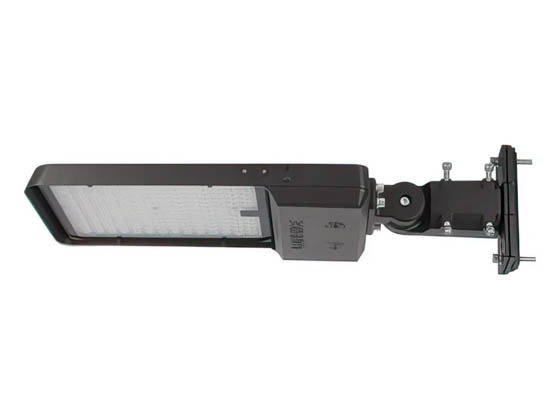

  • Includes Flexible arm and slipfitter mount
    • Flexible arm fits both round and square poles
    • Slipfitter fits 2 3/8" pole or tenon
  • Control ready port included (sensors sold separate)
    • Photocell 61393 (AREAFLDXANEMAPHOTOCELLUNV) 120-277V
    • PIR Motion & Daylight Sensor 63748 (AREA/PIRMOTIONDAYSENSOR/BZ)
      • Mounting height max 39ft
      • Remote control 65623 (REMOTE/MOTIONDAY/001)
    • Microwave Motion & Daylight Sensor 65732 (AREA/MWMOTIONDAYSENSOR/BZ)
      • Mounting height max 49ft
      • Remote control 65623 (REMOTE/MOTIONDAY/001)
  • 10kV surge protection
  • 3G vibration rated ANSI C136.31
  • IP65 wet location rated
  • 5-year limited warranty
  • 120-347V

Product Documents

Full Specs

Brand

LEDVANCE

Product Line

Opti-Select

Model Number

AREAFLD6AS300UNHDSC2ADJBZ
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
180/240/300 Watts
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
400/750/1000

Line Voltage

120-347
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3000/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3000
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
27000/36000/45000
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
100000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-40 to 122
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
15.8
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
6.3
Depth (in)
For fixtures and ballasts, depth is the measurement of total distance from front to back of the product in inches.
32.8
Finish
The decorative finish of the item.
Bronze

Housing

Aluminum die cast housing

Mounting

Arm/Slipfitter

Manufacturer Warranty

5 year limited
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Adjustable Beam Angle
The fixture incorporates a mechanism to adjust the spread of the beam.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes
Controls Ready
Indicates whether a fixture is capable of taking an integrated motion or light control, although the control is not included in the product itself.
Yes

DLC Listing

S-L1LBJ2 Premium
