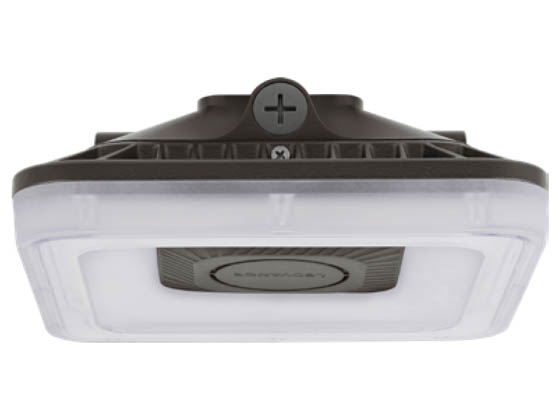

Sylvania LEDvance LED Canopy Fixture Adjustable Wattage (15/20/30W) and Color Includes Photocell and Control Ready Port

SKU: 66408 | Ordering Code: CANOPYPS030UNHD8SC2S8BZP  | UPC: 046135664083

LEDVANCE 66408 CANOPYPS030UNHD8SC2S8BZP Sylvania LEDvance LED Canopy Fixture Adjustable Wattage (15/20/30W) and Color Includes Photocell and Control Ready Port
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable
$84.99each
Fixture
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

Ships from SupplierUsually ships in 2-4 business days.

Add 3 to your cart to get free ground shipping *

Options

Brightness (Lumens)
2250 3000 4500 4500 6000 7500 9000 11250 15000

Product Highlights

  • Energy efficient replacement for a 70/100/150 watt HID bulb
  • Estimated life of 91.3 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Complete Your Solution

Product Description

Sylvania LEDvance LED Canopy Fixture Wattage (15/20/30) and Color Selectable with Photocell and Control Ready Port

  • 3-way wattage and color selectable
    • Wattage selectable (15W/20W/30W)
    • Color selectable (3000K/4000K/5000K)
  • Includes on/off photocell
  • Includes control ready port for LEDvance Link sensors (sold separate)
    • Basic Remote Controlled Sensors
      • Microwave motion and daylight sensor (65622)
      • PIR motion and daylight sensor (62664)
      • Remote control to program microwave or PIR sensor (65623)
    • Bluetooth LEDvance Link Sensors
      • BLE daylight and motion sensor (62634)
      • Required adapter for sensor (63652)
      • Optional remote control (62636)
  • Dual beam technology
    • Meets DLC Garage and Canopy optic requirements
    • No switches or lens swap needed
  • Small footprint of 8.7" by 8.7"
  • Surface or pendant mount
  • IP65 wet location rated
  • 5-year limited warranty
  • 120-347v

Product Documents

Full Specs

Brand

LEDVANCE

Model Number

CANOPYPS030UNHD8SC2S8BZP
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
15/20/30 Watts
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
70/100/150

Line Voltage

120-347
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3000/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3000
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
2250/3000/4500
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
100000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-40 to 122
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
8.7
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
8.7
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
3
Finish
The decorative finish of the item.
Bronze

Housing

Aluminum die cast

Mounting

Surface/Pendant

Manufacturer Warranty

5 year limited
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes
Controls Ready
Indicates whether a fixture is capable of taking an integrated motion or light control, although the control is not included in the product itself.
Yes

DLC Listings

S-FR4VDZ Premium, S-LNRYH7 Premium
