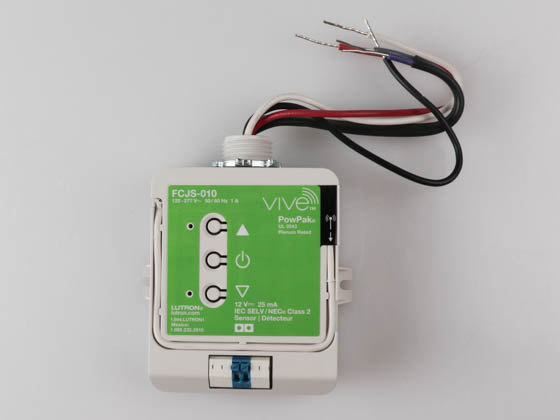

Lutron Vive PowPak 1-Amp 0-10V LED Dimming Relay Module

SKU: FCJS-010 | Ordering Code: FCJS-010  | UPC: 784276148962

Pricing varies with quantity, installation and other factors. Call 1-888-455-2800 to talk to an expert: we'll put together the most affordable and efficient solution for your business needs.

Or submit the form below and we'll call you.

    Contact an Expert

    Options

    Maximum Current (Amps)
    1 5 8 16
    Complete Your Solution

    Product Description–

    Lutron Vive PowPak wireless fixture control is a radio-frequency (RF) device that controls 0-10V for ballasts and LED drivers. The control module mounts to a fixture or a U.S.-style junction box.

    • Operating current: 25mA
    • Operating voltage: 120-277V
    • Controls up to 6mA of 0-10V controlled fixtures together
    • Mounts to a US-style junction box through a standard-size knockout
    • Ambient Operating Temperature - 32°F to 104°F
    • For indoor use only

     Ideal Application:  Wirelessly controlling the On/Off and/or dimming function of one 0-10V LED or linear Fluorescent fixture.

    Product Documents

    Full Specs–

    Brand

    		Lutron Electronics

    Product Line

    		Vive

    Model Number

    		FCJS-010

    Line Voltage

    		120-277
    Operating Temperature (°F)
    The ambient temperature in which the product can safely operate.
    		32 to 104
    Width (in)
    For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
    		2.8
    Height (in)
    For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
    		3.9
    Depth (in)
    For fixtures and ballasts, depth is the measurement of total distance from front to back of the product in inches.
    		1.25

    Manufacturer Warranty

    		1 year limited
    Maximum Current (Amps)
    The maximum amount of Amps that a ballast can hold.
    		1
    Compatibility
    Also known as load type, the bulb technology that a control can work with, such as LED, Fluorescent, CFL, Incandescent.
    		LED

    Switch Mechanism

    		Button
    Switch Function
    The capability for controling lighting from one or more location. Single pole switches can be used for one location, 3-Way for two, and wireless controls might control multiple locations.
    		Single Pole/3-Way/Wireless
    Load Rating (Volts)
    The voltage range that a control can handle.
    		0-10
    Dimming
    Dimming ballasts provide dimming capability when used with an appropriate controller and lamp.
    		Yes
