Wall Pack Lights

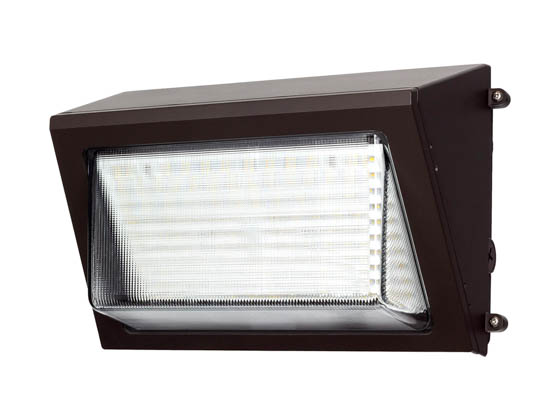

MaxLite Forward Throw LED Wall Pack Wattage (60/70/80W) and Color Selectable With Photocell

SKU: 111240 | Ordering Code: WCF80U-WCSBPC  | UPC: 767627059452

$99.99each
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

This item qualifies for free ground shipping *

Options

Brightness (Lumens)
4312 5390 6160 6320 7900 9480 9600 11200 12240 12800 15300 18360

Product Highlights

  • Energy efficient replacement for a 150/175/250 watt HID bulb
  • Estimated life of 91.3 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Description
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable

MaxLite WallMax versatile LED Wall Pack is both wattage (60W/70W/80W) and color (3000K/4000K/5000K) selectable. This LED wall pack includes a built-in on/off photocell. The field installable control arm mount can be purchased to allow for this fixture to be control capable with C-Max control nodes.

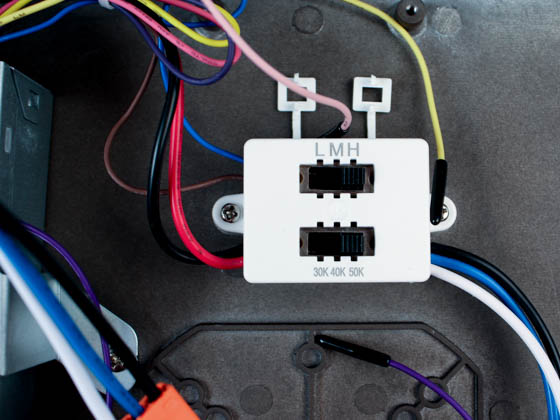

  • 3-way wattage and color selectable
    • Wattage selectable (60W/70W/80W)
    • Color selectable (3000K/4000K/5000K)
  • C-Max Control Ready (sold separate)
    • C-Max Network APP Control
      • NN-RDB (C-Max Network controlled APP ON/Off and scheduling)
      • NN-RDMPB (C-Max Network controlled APP PIR motion and photocell sensor CEA-RDB required)
      • CEA-RDB (Arm mount required for use with NN-RDMPB and NN-RDB)
  • Battery backup, glare shield, and wire guard available (sold separate)
  • Covers old HID 14" footprint
  • 6kV surge protection integral to driver
  • Four 1/2" conduit holes, one on each side for surface conduit applications
  • Wet location IP65 rated
  • 5 year limited warranty
  • Dimmable 0-10V
  • 120-277V

Product Documents

Full Specs

Brand

MaxLite

Product Line

WallMax/C-Max

Model Number

WCF80U-WCSBPC
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
60/70/80 Watts
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
150/175/250

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3000/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3000
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
9600/11200/12800
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
100000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-29 to 104
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
13.19
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
9.25
Depth (in)
For fixtures and ballasts, depth is the measurement of total distance from front to back of the product in inches.
7.48
Finish
The decorative finish of the item.
Bronze

Housing

Aluminum

Mounting

J-Box/Surface

Manufacturer Warranty

5 year limited
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes

DLC Listing

S-6NXQTV Premium
