LED Vapor Tight Light Fixtures | Low Bay Light Fixtures

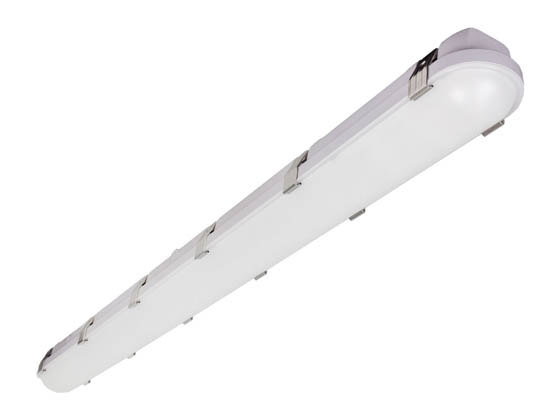

Maxlite 48" LED Vapor Tight Fixture Wattage and Color Selectable With Emergency Battery Backup

SKU: 111228 | Ordering Code: VE-4U23WCSEM  | UPC: 767627059339

$185.99each
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

This item qualifies for free ground shipping *

Options

Length (in)
47.3 94.1

Product Highlights

  • Estimated life of 45.7 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Description
  • DLC
    Listed
  • Wattage
    Selectable
  • Color
    Selectable

Maxlite's Value VE Series dimmable 48" LED Vapor Tight fixture is wattage selectable (23W/35W/47W) and kelvin selectable (3500K/4000K/5000K). This rugged vapor tight offers versatility with an IP65 rating for locations where water, humidity, and dust may occur. Ideal for utility lighting, parking garages, stairwell lighting, car washes, agricultural and any place where water may get into a fixture.

  • 3-way Wattage and Color Selectable
    • Wattage selectable (23W/35W/47W)
    • Color selectable (3500K/4000K/5000K)
  • Includes emergency battery backup at 1100 lumens for 90 minutes
  • Wet location IP65 rated
  • Stainless steal latches
  • Non-corrosive polycarbonate lens and housing
  • Surface mounting (suspension mounting kit sold separate)
  • 0-10V dimming
  • DLC listed
  • 120-277V

Product Documents

Full Specs

Brand

MaxLite

Product Line

Value Series

Model Number

VE-4U23WCSEM
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
23/35/47 Watts
Fluorescent Equivalent
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
54/96/108

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3500/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3500
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
3200/4700/6240
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
50000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-4 to 104
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
47.3
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
3.8
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
3.2
Nominal Length (ft)
The length to the nearest foot that linear bulbs or fixtures will fit.
4
Finish
The decorative finish of the item.
Gray

Housing

Polycarbonate

Mounting

Surface

Manufacturer Warranty

5 year limited
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes

Vapor Proof

Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Battery Backup
Has a backup battery to allow it to continue functioning in case of power failure.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes

DLC Listings

S-4TP6RL Standard, S-6ZDVTQ Standard
