Maxlite 2'x4' LED Troffer Retrofit Kit Wattage (22/28/34W) and Color Selectable C-Max Control Compatible (Pack of 2)

SKU: 110389 | Ordering Code: TRK24D22WCSCR/2PK  | UPC: 767627050930

$181.58($90.79 per Kit)
Pack of 2
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

This item does not ship outside the US

Order within the next 2 hours 18 minutes to ship today

This item qualifies for free ground shipping *

Product Highlights

  • Estimated life of 91.3 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Description
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable

Maxlite dimmable 2' x 4' LED troffer retrofit kits are color selectable (3500K/4000K/5000K) and wattage selectable (22W/28W/34W). Use the available USB-C port to install a C-Max control node for motion sensing. High performance optics delivers beautiful even light with excellent color rendering and low glare, while its architectural design features make them the perfect complement for offices, education, healthcare, hospitality and retail.

  • Can be retrofitted into most existing troffers in under 15 minutes without the need to break the ceiling plenum
  • Advanced UniGlo optics that provides uniform brightness across the lens, this product gives a smooth glare free illumination
  • Controls ready - Can be paired with Maxlite's C-Max Basic control node # 105890 for PIR motion sensing/daylight harvesting or control node # 106059 for Network PIR motion sensing/daylight harvesting - both sold separately
  • Use remote control # 105567 for easy commissioning for C-Max Basic - sold separately

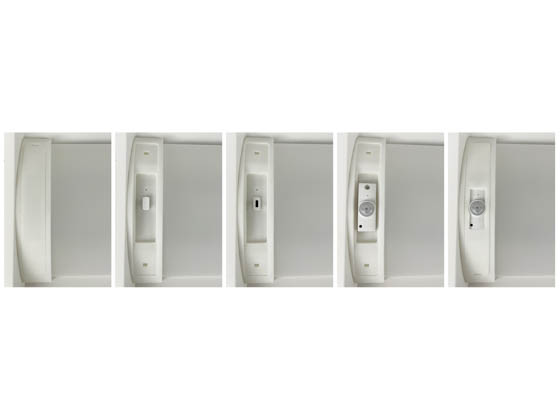

  • Controls port integrated into the lens of the fixture
  • Lumens shown are based on a 4000K setting
  • Material: Steel and polycarbonate lens
  • 0-10V dimming
  • Retrofit kit is powder coated after fabrication with a high quality, durable finish to ensure no unfinished edges and to avoid potential corrosion
  • 10 year limited warranty with labor allowance

Product Documents

Full Specs

Brand

MaxLite

Product Line

C-Max

Model Number

TRK24D22WCSCR/2PK
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
22/28/34 Watts
Fluorescent Equivalent
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
128

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3500/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3500
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
3490/4390/5270
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
100000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-4 to 122
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
48
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
24
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
3.1
Nominal Length (ft)
The length to the nearest foot that linear bulbs or fixtures will fit.
4
Nominal Width (ft)
The width to the nearest foot that fixtures will fit.
2
Finish
The decorative finish of the item.
White

Housing

Galvanized steel

Mounting

Fits 1" and 9/16" T-bar grids

Manufacturer Warranty

10 year limited
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes
Controls Ready
Indicates whether a fixture is capable of taking an integrated motion or light control, although the control is not included in the product itself.
Yes

DLC Listing

P86A5YZE Premium
