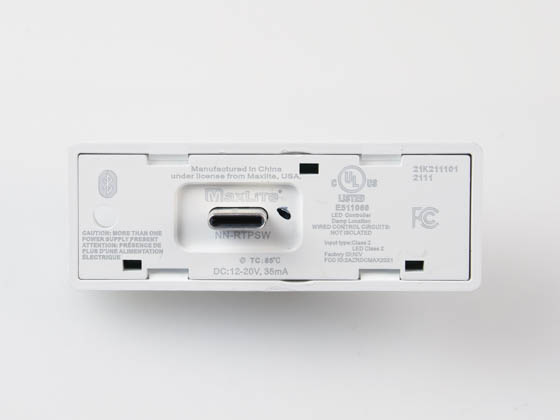

C-Max Network PIR Motion Sensor/Daylight Harvesting Node for Maxlite C-Max Control Ready Fixtures

SKU: 106059 | Ordering Code: NN-RTPSW  | UPC: 767627011330

Add to Cart
Save to BulbTrack ?

My BulbTrack

Finding the lighting solutions you need might be simple at Bulbs.com, but buying them is even easier. Thanks to our exclusive BulbTrack feature, you can quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page. Products are added to your My BulbTrack page when you check out from your shopping cart or add them from the product description pages.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home. Make buying your replacement lighting as simple as it should be. Create your BulbTrack today!

In StockReady to ship

Add 2 to your cart to get free ground shipping *


Adding a field installed Network PIR motion sensor/daylight harvesting feature to Maxlite's C-Max indoor fixtures is easy with the C-Max rectangular Bluetooth Network PIR motion sensor/daylight harvesting node.

  • Simple plug 'n play connection
  • Easy to install in the field with USB-C connection using pre-installed fixture receptacle
  • Easy commissioning with Maxlite's C-Max App (Available in IOS and Android)
    • Individual Addressability and/or Grouping
    • Multi-level dimming: Manual On/Off, Automatic On/Off and Automatic Partial On/Off control capability
    • Create scenes for more customized dimming scenarios
    • Time clock scheduling for individual lights, groups or scenes
    • High Trim/Tuning sets the maximum light level based on requirements in each space
  • Local Bluetooth Network with no gateway needed
  • Wireless Standard: BLE4.2 MESH IEEE 802.15.1
  • Cybersecurity: UL1376 Bronze Rating Pending
  • Connection port: USB-C
  • Mesh Range: 100 ft. node-to-node and 50 ft. node-to-device (Commissioning)
  • PIR Sensor Features:
    • Daylight Harvesting: On/Off
    • Motion Sensing: On/Off
    • First Time Delay: 1-59 minutes/infinite
    • Second Time Delay: 0-59 minutes/infinite
    • Dim Level: 1-100%
    • Mounting Height: 8-20 ft.
    • Detection Range: Up to 20 ft. diameter
    • Detection Horizontal Pattern: 360°
    • Detection Vertical Pattern: 90°
  • Includes locking screw to prevent vandalism and withstand vibration
  • Operating voltage: 12-20VDC
  • Not recommended for applications with other high frequency interference

Product Documents

Full Specs



Product Line


Model Number

Operating Temperature (°F)

Operating Temperature (°F)

The ambient temperature in which the product can safely operate.
-40 to 130
Length (in)

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
Width (in)

Width (in)

For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
Height (in)

Height (in)

For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.


5 year limited
