Motion Sensor/Daylight Harvesting Network Node for Maxlite C-Max Control Ready Fixtures

SKU: 105905 | Ordering Code: NN-RDMSW  | UPC: 767627011979

$85.89each
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Order within the next 4 hours 40 minutes to ship today

Add 2 to your cart to get free ground shipping *

Description

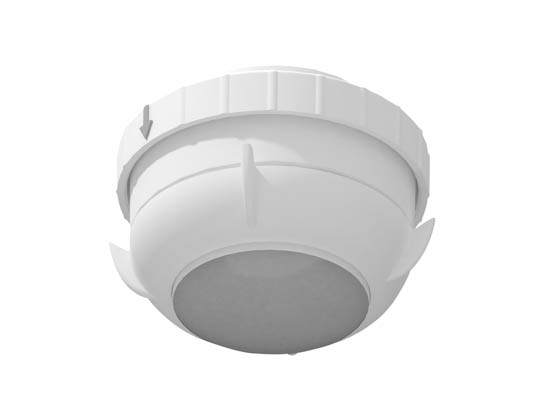

Adding a field installed Network PIR motion sensor/daylight harvesting feature to Maxlite's C-Max indoor fixtures is easy with the C-Max Bluetooth Network PIR motion sensor/daylight harvesting node.

  • Compatible with Maxlite C-Max BLHE3 Series Linear High Bays, Strips, Vapor Tights and Utility Wraps
  • Simple plug 'n play connection

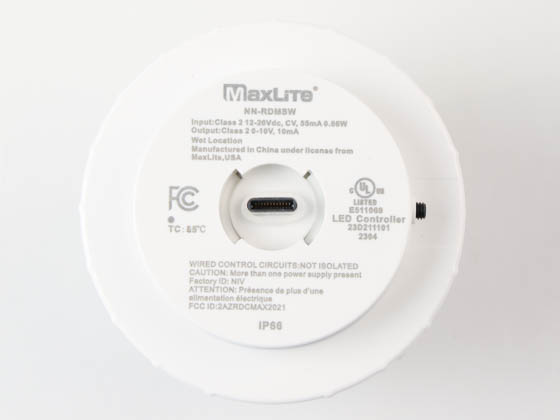

  • Easy to install in the field with USB-C connection using pre-installed fixture receptacle
  • Easy commissioning with Maxlite's C-Max App (Available in IOS and Android)
    • Individual Addressability and/or Grouping
    • Multi-level dimming: Manual On/Off, Automatic On/Off and Automatic Partial On/Off control capability
    • Create scenes for more customized dimming scenarios
    • Time clock scheduling for individual lights, groups or scenes
    • High Trim/Tuning sets the maximum light level based on requirements in each space
  • Local Bluetooth Network with no gateway needed
  • Wireless Standard: BLE4.2 MESH IEEE 802.15.1
  • Cybersecurity: UL1376 Bronze Rating Pending
  • Connection port: USB-C
  • Mesh Range: 100 ft. node-to-node and 50 ft. node-to-device (Commissioning)
  • PIR Sensor Features:
    • Daylight Harvesting: On/Off
    • Motion Sensing: On/Off
    • First Time Delay: 1-59 minutes/infinite
    • Second Time Delay: 0-59 minutes/infinite
    • Dim Level: 1-100%
    • Mounting Height: 10-40 ft.
    • Detection Range: Up to 20 ft. diameter
    • Detection Horizontal Pattern: 360°
    • Detection Vertical Pattern: 90°
  • Includes locking screw to prevent vandalism and withstand vibration
  • Operating voltage: 12-20VDC
  • Not recommended for applications with other high frequency interference

Product Documents

Full Specs

Brand

MaxLite

Product Line

C-Max

Model Number

NN-RDMSW
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-40 to 130
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
1.9
Diameter (in)
Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.
2.5
Finish
The decorative finish of the item.
White

Detection Range (ft)

80

Warranty

5 year limited

Motion Sensor

Yes
