Floodlight Fixtures

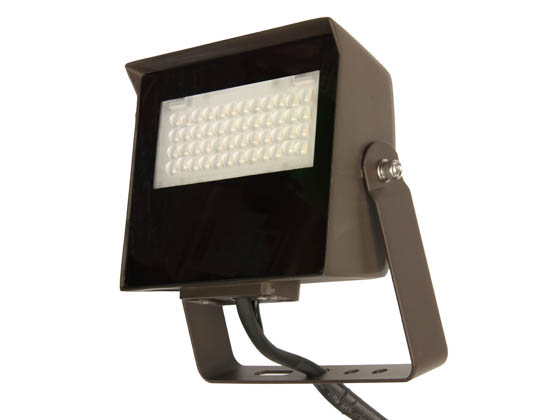

Maxlite Slim LED Flood Light Fixture Wattage (10/15/20W), Color, & Beam Angle Selectable Includes Photocell Knuckle & Yoke/Trunnion Mount

SKU: 111747 | Ordering Code: MSF20UA-WCSBKTYPC  | UPC: 767627064500

$52.99each
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Order within the next 2 hours 27 minutes to ship today

Add 2 to your cart to get free ground shipping *

Options

Brightness (Lumens)
1630 2440 2440 2890 4010 5250 7300 7800 8970 9010 11470 12460

Product Highlights

  • Energy efficient replacement for a 70 watt HID bulb
  • Estimated life of 91.3 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Description
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable

Maxlite's Slim Flood Series fixtures are an economical and versatile solutions for any outdoor flood or area light applications. This fixture has built-in switchable features including wattage (10W/15W/20W), color (3000K/4000K/5000K) and beam angle (55°/75°/90°). Also included in the box is both a 1/2 threaded knuckle and yoke/trunnion mount as well as an easy on/off photocell.

  • 3-way color, wattage, and beam angle selectable
    • Wattage selectable (10W/15W/20W)
    • Color selectable (3000K/4000K/5000K)
    • Beam angle (55°/75°/90°)
  • Built-in easy on/off photocell
  • Includes both a 1/2" threaded knuckle and a yoke/trunnion mount (slip fitter accessories sold separately)
  • 4' SO cord
  • Die cast aluminum housing with corrosion resistant powder coat paint
  • Tempered glass lens
  • IP65 wet location rated
  • 0-10V dimming
  • DLC Premium
  • 120-277V

Product Documents

Full Specs

Brand

MaxLite

Product Line

Slim Flood

Model Number

MSF20UA-WCSBKTYPC
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
10/15/20 Watts
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
70

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3000/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3000
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
1630/2440/2890
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
100000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-40 to 104
Beam Angle (°)
The width of a light beam, expressed in degrees. The beam angle is often part of the ordering code for reflector lamps. For example, a 50PAR30/HIR/NFL25 is a 50-watt PAR30 narrow flood lamp with a beam angle of 25 degrees.
55/75/90
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
6.3
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
2.7
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
8.7
Finish
The decorative finish of the item.
Bronze

Housing

Aluminum

Mounting

Yoke or Trunnion/1/2" Threaded Knuckle

Manufacturer Warranty

5 year limited

Photocell

Yes
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Dusk to Dawn
Indicates that a lamp will self-activate when light levels dip below a certain level.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes

DLC Listing

S-RLZY60 Premium
