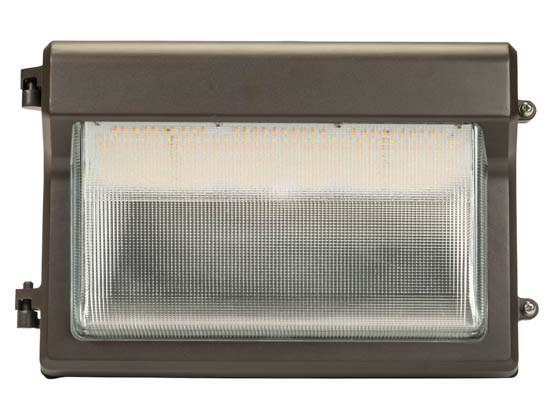

Keystone XFiT Slim LED Wall Pack Wattage (55/70/80W) and Color Selectable With Photocell 10-Year Warranty

SKU: KT-WPLED80PS-M4-8CSB-VDIM | Ordering Code: KT-WPLED80PS-M4-8CSB-VDIM  | UPC: 843654155548

Keystone KT-WPLED80PS-M4-8CSB-VDIM XFiT Slim LED Wall Pack Wattage (55/70/80W) and Color Selectable With Photocell 10-Year Warranty
Keystone KT-WPLED80PS-M4-8CSB-VDIM XFiT Slim LED Wall Pack Wattage (55/70/80W) and Color Selectable With Photocell 10-Year WarrantyKeystone KT-WPLED80PS-M4-8CSB-VDIM XFiT Slim LED Wall Pack Wattage (55/70/80W) and Color Selectable With Photocell 10-Year WarrantyKeystone KT-WPLED80PS-M4-8CSB-VDIM XFiT Slim LED Wall Pack Wattage (55/70/80W) and Color Selectable With Photocell 10-Year WarrantyKeystone KT-WPLED80PS-M4-8CSB-VDIM XFiT Slim LED Wall Pack Wattage (55/70/80W) and Color Selectable With Photocell 10-Year Warranty
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable
$129.99each
Fixture
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

Ships from SupplierUsually ships in 1-2 business days.

Add 2 to your cart to get free ground shipping *

Options

Brightness (Lumens)
5075 6435 7370 8030 10010 11280 11520 14300 16920

Product Highlights

  • Energy efficient replacement for a 100/175/250/250 watt HID bulb
  • Estimated life of 91.3 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Complete Your Solution

Product Description

This Keystone LED wall pack comes with an industry leading 10-year warranty. The robust rugged die-cast aluminum housing carries a IP65, UL wet location, and IK06 rating. The slim low-profile design gives the unit a modern sleek appearance. This includes 5 different knockouts for 1/2" conduit on the back and all four sides for easy installation.

  • 3-way wattage and 3-way color selectable
    • Wattage selectable (55W/70W/80W)
    • Color selectable (3000K/4000K/5000K)
  • Integrated easy on/off photocell
  • Precision die-cast aluminum housing
  • Five 1/2" knockouts on the back and all four sides
  • Operating temp of -40 to 122°
  • IP65 rated
  • IK06 rated
  • UL wet location rated
  • Dimmable 0-10V

Product Documents

Full Specs

Brand

Keystone

Product Line

XFiT

Model Number

KT-WPLED80PS-M4-8CSB-VDIM
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
55/70/80 Watts
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
100/175/250/250

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
90
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3000/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3000
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
8030/10010/11280
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
100000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-40 to 122
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
14.37
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
9.29
Depth (in)
For fixtures and ballasts, depth is the measurement of total distance from front to back of the product in inches.
4.72
Finish
The decorative finish of the item.
Bronze

Housing

Die Cast Aluminum

Mounting

J-Box/Surface

Manufacturer Warranty

10 year limited

Photocell

Yes
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes

DLC Listing

S-4GY3DL Premium
