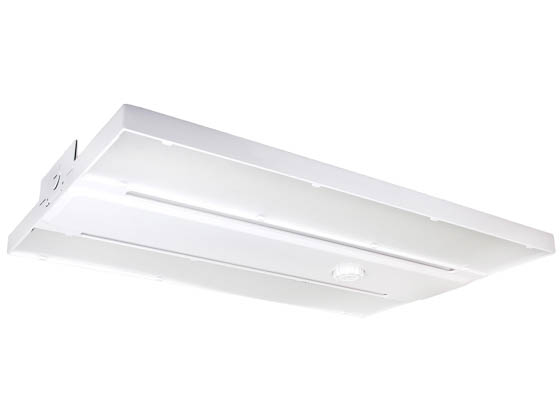

LED Linear High Bay - 135/165/195W, 29,000LM, 3500K/4000K/5000K, C-Max Control Ready - Maxlite

SKU: 112529 | Ordering Code: HLV-135WUF-CSCR

MaxLite 112529 HLV-135WUF-CSCR LED Linear High Bay - 135/165/195W, 29,000LM, 3500K/4000K/5000K, C-Max Control Ready - Maxlite
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable
$129.99each
Fixture
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Add 2 to your cart to get free ground shipping *

Options

Battery Backup
No Yes

Product Highlights

  • Energy efficient replacement for a 250/400 watt HID bulb
  • Estimated life of 91.3 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage

Complete Your Solution

Product Description

Mid-range MaxLite linear high bay for warehouses and manufacturing facilities with 20–35 ft. ceilings. Selectable wattage (135/165/195W) and CCT (3500K/4000K/5000K). Up to 29,0000 lumens at 195W. DLC Premium listed. C-Max Control Ready port for occupancy sensing, daylight harvesting, and group dimming via MaxLite's C-Max ecosystem. Universal 120–277V. White finish. Replaces 400W metal halide linear pendants. C-Max compatibility adds real value for facilities enrolled in utility demand response programs requiring sensor-verified energy reduction reporting. Standing behind an industry high 10-year warranty.

  • 3-Way Wattage and Color Selectable
    • Color Selectable (3500K/4000K/5000K)
    • Wattage Selectable
      • 135W 20,900 lumens
      • 165W 24,900 lumens
      • 195W 29,000 lumens
  • C-Max Control Ready
    • Basic C-Max Remote Control
      • CN-RDMSW (PIR motion and daylight sensor programmable with remote control CN-REMOTE)
      • CN-REMOTE (Remote control for programming CN-RDMSW)
    • EasyRF Control
      • RF-RDMSW (PIR motion and daylight sensor programmable with remote control RF-REMOTE)
      • RF-REMOTE (Remote control for programming RF-RDMSW)
    • C-Max Network APP Control
      • NN-RDMSW (C-Max Network controlled APP PIR motion and photocell sensor)
      • NN-RDW (C-Max Network controlled APP ON/Off and scheduling)
    • Silvair Network APP Control
      • NN-RDMSW-SL (Silvair Network controlled PIR motion and photocell sensor)
      • NN-RDW-SL (C-Max Network controlled APP ON/Off and scheduling)
  • Includes V hook and 40" knotted chain

  • Additional mounting kit accessories (sold separate)

    • Surface mount kit (HLV-SMKIT)

    • Pendant pipe mount kit (HLV-PMKIT)

    • 15' suspension cable kit (MLCHKLSV15)
  • Toolless ease swap lenses available
    • 90°x90° included
    • 45°x90° narrow lens HLV-NLENS2 (sold separate)
  • Emegency battery backup available (sold separate)
  • 0-10V dimming
  • 10-year limited warranty

Full Specs

Brand

MaxLite

Product Line

C-Max

Model Number

HLV-135WUF-CSCR
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
135/165/195 Watts
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
250/400
Fluorescent Equivalent
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
216/432

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3500/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3500
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
20900/24900/29000
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
100000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-40 to 122
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
18.11
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
11.81
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
1.77
Finish
The decorative finish of the item.
White

Housing

Sheet metal

Mounting

V-hook and chain included

Manufacturer Warranty

10 year limited
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Battery Backup
Has a backup battery to allow it to continue functioning in case of power failure.
No
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes
Controls Ready
Indicates whether a fixture is capable of taking an integrated motion or light control, although the control is not included in the product itself.
Yes

DLC Listing

S-5VL660 Premium
