Halco 2x2 Flat Panel LED Fixture Wattage and Color Selectable Includes Control Ready Port

SKU: 90522 | Ordering Code: FPLCR-22-LS-CS-UNV  | UPC: 807154905225

Halco Lighting 90522 FPLCR-22-LS-CS-UNV Halco 2x2 Flat Panel LED Fixture Wattage and Color Selectable Includes Control Ready Port
Halco Lighting 90522 FPLCR-22-LS-CS-UNV Halco 2x2 Flat Panel LED Fixture Wattage and Color Selectable Includes Control Ready PortHalco Lighting 90522 FPLCR-22-LS-CS-UNV Halco 2x2 Flat Panel LED Fixture Wattage and Color Selectable Includes Control Ready PortHalco Lighting 90522 FPLCR-22-LS-CS-UNV Halco 2x2 Flat Panel LED Fixture Wattage and Color Selectable Includes Control Ready PortHalco Lighting 90522 FPLCR-22-LS-CS-UNV Halco 2x2 Flat Panel LED Fixture Wattage and Color Selectable Includes Control Ready Port
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable
$41.99each
Fixture
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Order within the next 2 hours 3 minutes to ship today

Add 5 to your cart to get free ground shipping *

Options

Brightness (Lumens)
2638 2842 3237 3713 4064 4124 4603 4767 5923
Length (in)
24 48

Product Highlights

  • Estimated life of 45.7 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Complete Your Solution

Product Description

This Halco dimmable 2x2 flat panel LED fixture is wattage (20/30/35W) and Color (3500K/4000K/5000K) selectable. This fixture also includes a controls ready receptacle for a microwave sensor with daylight harvestng (90552) or with a PIR sensor with daylight harvesting (90550).

  • 3-way power and 3-way kelvin (CCT) switches
    • Wattage selectable - 20W, 30W, 35W
    • Kelvin (CCT) selectable - 3500K, 4000K and 5000K

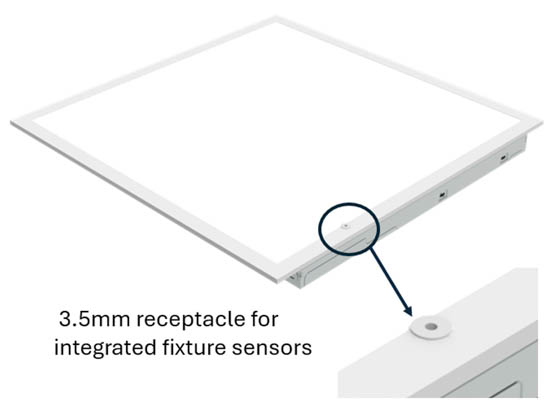

  • Intergrated controls ready 3.5mm receptacle (sold seperate)
    • Microwave sensor with daylight harvestng (SKU 90552)
    • PIR sensor with daylight harvesting (SKU 90550)
    • Motion control sensor remote (SKU 30292)
  • Control settings
    • Motion Sensitivity 25/50/75/100% (default 100%)
    • Hold Time 8 settings between 5sec-30min (default 5 seconds)
    • Bi-level Standy Dim Level 10//20/30/50% (default 10%)
    • Bi-level Standby Dim Time 8 settings betwen off-60min (default off)
    • Photocell Sensitivity disabled/2/10/30/50/80/120Lux (default disabled)
  • White aluminum frame with frosted PMMA lens prevents yellowing
  • Built-in seismic hooks standard
  • Excellent color consistency and superior lumen maintenance
  • 0-10V dimming
  • IC rated

Product Documents

Full Specs

Brand

Halco Lighting

Product Line

ProLED

Model Number

FPLCR-22-LS-CS-UNV
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
20/30/35 Watts

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3500/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3500
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
2842/4064/4603
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
50000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-4 to 104
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
24
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
24
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
1.7
Nominal Length (ft)
The length to the nearest foot that linear bulbs or fixtures will fit.
2
Nominal Width (ft)
The width to the nearest foot that fixtures will fit.
2
Finish
The decorative finish of the item.
White

Housing

Steel housing with aluminum frame

Shape

2x2

Manufacturer Warranty

5 year limited
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes
Controls Ready
Indicates whether a fixture is capable of taking an integrated motion or light control, although the control is not included in the product itself.
Yes

DLC Listing

S-0690JJ Premium
