Halco 1x4 Flat Panel LED Fixture Wattage and Color Selectable Integrated Control Ready

SKU: 90521 | Ordering Code: FPLCR-14-LS-CS-UNV | UPC: 807154905218

Printer friendly

$59.99each

Add to Cart

Save to BulbTrack

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Add 2 to your cart to get free ground shipping *

Options

Brightness (Lumens)

2638 2842 3237 3713 4064 4124 4603 4767 5923

Product Highlights

Estimated life of 45.7 years based on 3 hours use per day
Adjustable color
Adjustable wattage

Description

DLC
Premium
Wattage
Selectable
Color
Selectable

This Halco dimmable 1x4 flat panel LED fixture is wattage (20/30/35W) and Color (3500K/4000K/5000K) selectable. This fixture also includes a controls ready receptacle for a microwave sensor with daylight harvestng (90552) or with a PIR sensor with daylight harvesting (90550).

3-way power and 3-way kelvin (CCT) switches
- Wattage selectable - 20W, 30W, 35W
- Kelvin (CCT) selectable - 3500K, 4000K and 5000K

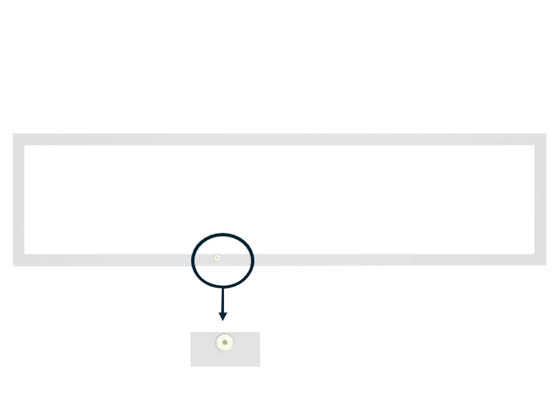

Intergrated controls ready 3.5mm receptacle (sold seperate)
- Microwave sensor with daylight harvestng (SKU 90552)
- PIR sensor with daylight harvesting (SKU 90550)
- Motion control sensor remote (SKU 30292)
Recessed in T-bar grid ceilings with integral earthquake clips for secure attachment
Multiple knockouts on driver compartment
IC rated

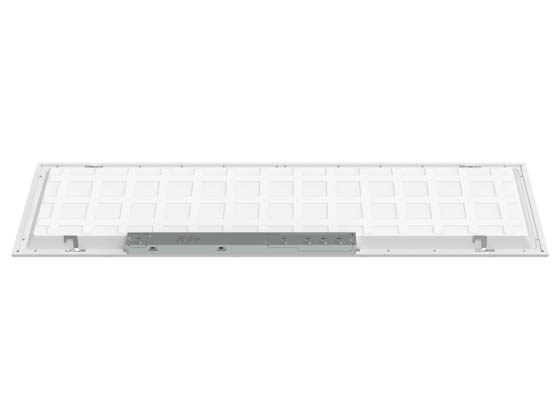

White aluminum frame with frosted PMMA lens prevents yellowing
Built-in seismic hooks standard
Excellent color consistency and superior lumen maintenance
0-10V dimming

Full Specs

Brand	Halco Lighting
Product Line	ProLED
Model Number	FPLCR-14-LS-CS-UNV
Energy Used A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.	20/30/35 Watts
Line Voltage	120-277
CRI Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.	80
Color Temperature (Kelvin) An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).	3500/4000/5000
Lowest Color Temperature (Kelvin) The warmest color temperature that can be set for a color-tuneable product.	3500
Highest Color Temperature (Kelvin) The coolest color temperature that can be set for a color-tuneable product.	5000
Brightness (Lumens) A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.	2638/3237/3713
Average Rated Life (hr) A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.	50000
Operating Temperature (°F) The ambient temperature in which the product can safely operate.	-4 to 104
Bulb Type Supplied Type of bulb supplied with the fixture	LED

Length (in) Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.	48
Width (in) For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.	12
Height (in) For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.	1.7
Finish The decorative finish of the item.	White
Housing	Steel housing with aluminum frame
Warranty	5 year limited
Damp Location Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment	Yes
DLC Listing Approved by the DesignLights Consortium, a collaboration of utility companies and regional energy efficiency organizations. Approved products meet the consortium's standards for ensuring high-quality, energy-efficient lighting design. There are three categories, Standard, Premium and Horticultural, plus Luna for light-pollution minimization.	S-Y81XLN Premium
Dimmable Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.	Yes
Color Selectable Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.	Yes
Wattage Selectable Device will work with a range of different wattages.	Yes
Controls Ready Indicates whether a fixture is capable of taking an integrated motion or light control, although the control is not included in the product itself.	Yes
