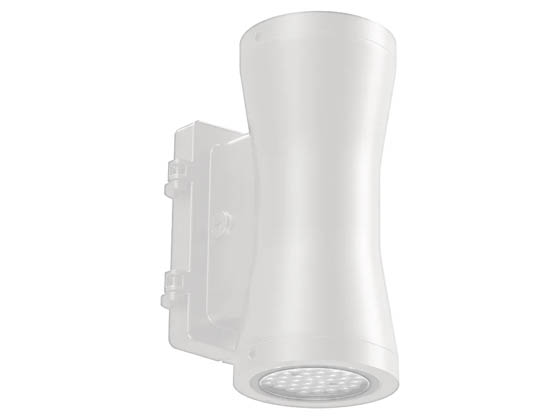

Westgate LED 7" Cylinder Up/Down Light Wattage (18/30/45/60W) and Color Selectable with Photocell White Finish

SKU: WMA-UDL-MCTP-WH-D | Ordering Code: WMA-UDL-MCTP-WH-D

$259.99each
Fixture
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

Ships from SupplierUsually ships in 2-4 business days.

This item qualifies for free ground shipping *

Options

Product Highlights

  • Adjustable color
  • Adjustable wattage
Description
  • Wattage
    Selectable
  • Color
    Selectable

Westgate WMA Series LED 7" cylinder up/down light wattage (18/30/45/60W) and color selectable with photocell. This versatile fixture is designed to be used in multiple applications for a uniform look throughout the property. Select between a low lumen output all the way up to a high output 60W 6,600 lumens.

  • 4-way wattage and 3-way color selectable
    • Wattage selectable (18W/30W/45W/60W)
    • Color selectable (3000K/4000K/5000K)
  • Easy switch to illuminate up, down or both up and down
  • Easy on/off photocell
  • 45° beam angle
  • 6,600 total lumen output (3,300 up and 3,300 down)
  • White finish (alternative black, bronze, and silver options available)
  • Wet location rated
  • 0-10v dimming
  • 120-277v

Product Documents

Full Specs

Brand

Westgate

Product Line

WMA Series

Model Number

WMA-UDL-MCTP-WH-D
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
18/30/45/60 Watts

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3000/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3000
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
1980/3300/4950/6600
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-68 to 104
Beam Angle (°)
The width of a light beam, expressed in degrees. The beam angle is often part of the ordering code for reflector lamps. For example, a 50PAR30/HIR/NFL25 is a 50-watt PAR30 narrow flood lamp with a beam angle of 25 degrees.
45
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
9.06
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
14.17
Diameter (in)
Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.
6.3
Finish
The decorative finish of the item.
White

Housing

Die-Cast Aluminum

Mounting

J-Box/Surface

Manufacturer Warranty

7 year limited

Photocell

Yes
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes
