LED High Bay UFO Fixtures

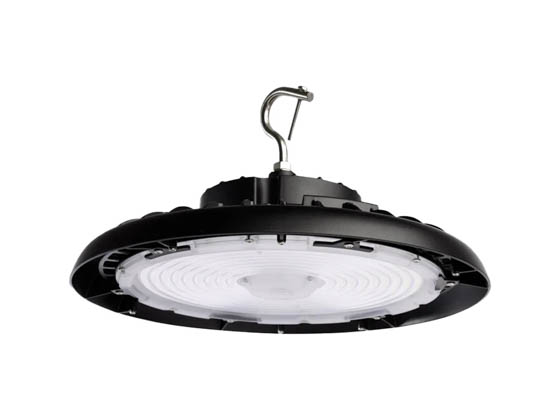

Sylvania LEDvance UFO High Bay LED Fixture 100W 4000K Includes Control Ready Port

SKU: 62320 | Ordering Code: UFOHIBA2A/100UNVD840/BL  | UPC: 046135623202

LEDVANCE 62320 UFOHIBA2A/100UNVD840/BL Sylvania LEDvance UFO High Bay LED Fixture 100W 4000K Includes Control Ready Port
Printer friendly
  • DLC
    Premium
$39.99each
Fixture
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Order within the next 5 hours 22 minutes to ship today

Add 3 to your cart to get free ground shipping *

Options

Brightness (Lumens)
14200 28400

Product Highlights

  • Energy efficient replacement for a 150/250/400 watt HID bulb
  • Estimated life of 137 years based on 3 hours use per day
Complete Your Solution

Subtotal: $160.95

Add 5 Items to Cart

Product Description–

Lighting Facts Per Bulb

Brightness 14200 lumens
Estimated Yearly Energy Cost $12.05
Based on 3 hrs/day, 11¢/kWh
Cost depends on rates and use
Life
Based on 3 hrs/day137 years
Light Appearance
WarmCool
4000 K
Energy Used100 watts

This Sylvania Osram LEDvance UFO high bay is an economical choice for retail, big box stores, gymnasiums, warehouses, and manufacturing.

  • Control ready (sold separate)
    • PIR motion and daylight harvesting sensor 62664 (HIGHBAY/PIR/MOTIONDAYSENSOR2)
    • Microwave sand daylight harvesting sensor 65622 (HIGHBAY/MOTIONDAYSENSOR)
    • Remote control for PIR and microwave sensor 65623 (REMOTE/MOTIONDAY/001)
  • Adjustable settings
    • Brightness 70/80/90/100% (default 100%)
    • Hold time 10s/1m/10m/30m (default 10min)
    • Occupancy sensitivity 20/50/75/100% (default 100%)
    • Stand-by dim level 0/10/20/30/50% (default 30%)
    • Stand-by time 1min/30min/60min/infinite (default 30min)
    • Daylight threshold 10lux/30lux/50lux/100lux/500lux/disable (default 50lux)
  • Mounting hook included
  • Thermally conducts LED heat to optimize performance and long life
  • Aluminum housing with ploycarbonate lens
  • Hook mount included
  • Includes 6' power cable and 3' dimming cable
  • IP65 wet rated
  • NSF splash zone rated
  • IK08 rated
  • 0-10V dimming



Product Documents

Full Specs–

Brand

LEDVANCE

Model Number

UFOHIBA2A/100UNVD840/BL
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
100 Watts
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
150/250/400

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
4000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
14200
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
150000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-40 to 122
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
8.27
Diameter (in)
Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.
11.81
Finish
The decorative finish of the item.
Black

Housing

Die-cast aluminum

Mounting

Hook

Manufacturer Warranty

5 year limited
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Controls Ready
Indicates whether a fixture is capable of taking an integrated motion or light control, although the control is not included in the product itself.
Yes

DLC Listing

PL4UGOSJF4S4 Premium
