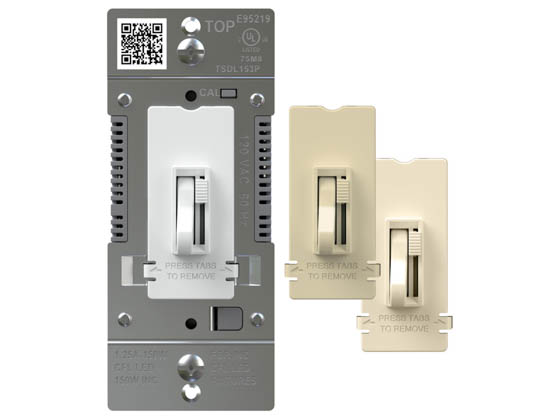

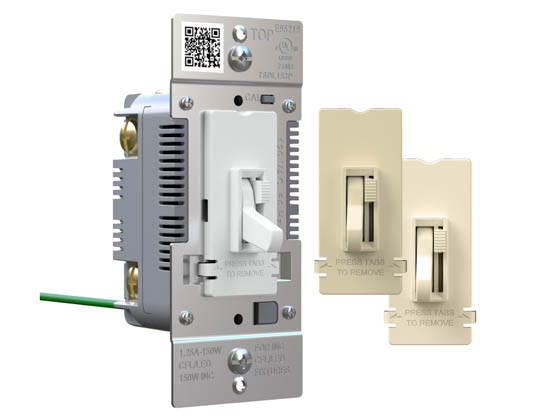

Legrand TSDL153PTC 150W, 120V Trademaster Toggle Slide LED Advanced Dimmer, Tri-Color

SKU: TSDL153PTC | Ordering Code: TSDL153PTC  | UPC: 785007450576

$28.39each
Dimmer
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Add 8 to your cart to get free ground shipping *

Product Description–

Legrand TSDL153PTC 150W, 120V Trademaster Toggle Slide LED Advanced Dimmer, Tri-Color



  • Specifically designed for use with dimmable LED bulbs and fixtures up to 150W at 120AC. Optimized to work out of the box, and provide flicker-free control of LEDs.
  • Not intended for use with 0-10V, Magnetic Low Voltage or Electric Low Voltage Drivers
  • Matches appearance of standard Pass&Seymour toggle switch
  • Advanced dimming technology maximizes LED compatibility to provide a full range of control while helping to eliminate most common LED dimming issues
  • Simple high-and-low end dimming limit adjustability with easy-to-push calibration button to meet all lighting preferences and eliminate LED flickering
  • Replaces any basic single-pole or 3-way switch or dimmer in less than 15 minutes. No neutral wire required, works with both new construction and retrofit applications
  • Back-wire screw and pressure plate terminations for easy and reliable wiring with ground wire lead and wire nut provided
  • QR code provided on front face of device to provide easy access to installation guide and videos
  • Constant memory feature returns light levels and user adjustments to previous settings following a power failure or outage
  • Optional LED Burst Mode setting can be activated as needed to help eliminate or reduce LED turn on delays and pop-ons

Product Documents

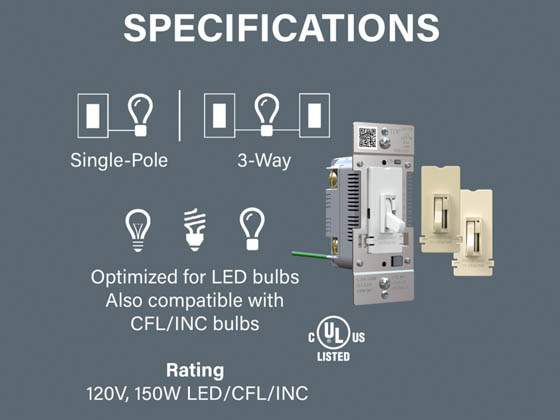

Full Specs–

Brand

Legrand

Product Line

Trademaster

Model Number

TSDL153PTC

Line Voltage

120
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
32 to 104
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
1.74
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
4.2
Depth (in)
For fixtures and ballasts, depth is the measurement of total distance from front to back of the product in inches.
1.57
Finish
The decorative finish of the item.
Almond/Ivory/White

Mounting

Wall Box

Manufacturer Warranty

1 year limited
Maximum Load (Watts)
The maximum power that a product can handle.
150
Compatibility
Also known as load type, the bulb technology that a control can work with, such as LED, Fluorescent, CFL, Incandescent.
LED/CFL/Incandescent

Switch Mechanism

Slider/Toggle
Switch Function
The capability for controling lighting from one or more location. Single pole switches can be used for one location, 3-Way for two, and wireless controls might control multiple locations.
Single Pole/3-Way
Load Rating (Volts)
The voltage range that a control can handle.
120
Dimming
Dimming ballasts provide dimming capability when used with an appropriate controller and lamp.
Yes

Wallplate Included

No
