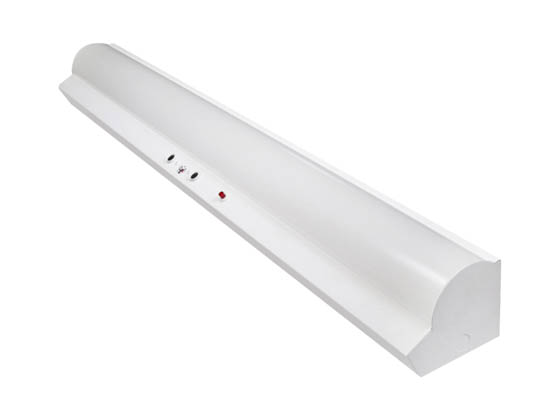

LED Stairwell Fixture 4FT - Ultrasonic Motion Sensor, 5,445LM Max, Multi-CCT - Sylvania

SKU: 65584 | Ordering Code: STAIR1A/S45UNVD8SC7/48S/WH/US  | UPC: 046135655845

LEDVANCE 65584 STAIR1A/S45UNVD8SC7/48S/WH/US LED Stairwell Fixture 4FT - Ultrasonic Motion Sensor, 5,445LM Max, Multi-CCT - Sylvania
LEDVANCE 65584 STAIR1A/S45UNVD8SC7/48S/WH/US LED Stairwell Fixture 4FT - Ultrasonic Motion Sensor, 5,445LM Max, Multi-CCT - SylvaniaLEDVANCE 65584 STAIR1A/S45UNVD8SC7/48S/WH/US LED Stairwell Fixture 4FT - Ultrasonic Motion Sensor, 5,445LM Max, Multi-CCT - SylvaniaLEDVANCE 65584 STAIR1A/S45UNVD8SC7/48S/WH/US LED Stairwell Fixture 4FT - Ultrasonic Motion Sensor, 5,445LM Max, Multi-CCT - Sylvania
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable
$259.99each
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

This item qualifies for free ground shipping *

Options

Length (in)
23.90 47.90
Battery Backup
No Yes

Product Highlights

  • Estimated life of 137 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage

Complete Your Solution

Product Description

Sylvania 4FT LED stairwell fixture with integrated programmable ultrasonic motion sensor for larger stairwells, extended corridors, and egress paths requiring broader coverage. Selectable wattage (30W/35W/45W) and CCT (3500K/4000K/5000K). Ultrasonic technology detects occupancy beyond line-of-sight which is essential for long corridors, L-shaped stairwells, and spaces where direct PIR detection is unreliable. DLC listed. Programmable sensor settings via programming tool (sold separately). Universal 120-277V. White finish. Eliminates separate sensor hardware and wiring costs compared to sensor-ready fixtures requiring plug-in accessories. Ideal for office buildings, schools, hospitals, and commercial facilities requiring automated stairwell lighting control.

  • 3-way Wattage and Color Selectable
    • Color selectable (3500K/4000K/5000K)
    • Wattage selectable
      • 30W 3,750 lumens
      • 35W 4,340 lumens
      • 45W 5,445 lumens
  • Includes built-in ultrasonic bilevel motion detector
    • Detection range setting: low, medium, & high
    • Sensitivity: increase and decrease switch
    • Time delay after no motion detected: 1min, 5min, or 20min
    • Bilevel dimming: after no motion detected dim to off, 10%, 25%, or 50%
  • Sensors controlled by dip switches and dials
  • Polycarbonate lens and powder coated metal body
  • 10W emergency battery backup option sold separate
  • Wall or ceiling mount (template included)
  • 0-10v dimming
  • 120-277V
  • 5-year limited warranty

Product Documents

Full Specs

Brand

LEDVANCE

Model Number

STAIR1A/S45UNVD8SC7/48S/WH/US
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
30/35/45 Watts
Fluorescent Equivalent
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
40/48/54/64/80/96/108/128

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3500/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3500
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
3750/4340/5445
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
150000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-4 to 122
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
47.9
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
4.9
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
5.6
Nominal Length (ft)
The length to the nearest foot (or half foot in particular cases) that linear bulbs or fixtures will fit.
4
Finish
The decorative finish of the item.
White

Housing

Polycarbonate

Mounting

Surface

Manufacturer Warranty

5 year limited

Motion Sensor

Yes
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Battery Backup
Has a backup battery to allow it to continue functioning in case of power failure.
No
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes
Controls Ready
Indicates whether a fixture is capable of taking an integrated motion or light control, although the control is not included in the product itself.
Yes

DLC Listing

PLKRB2S9UAVQ Premium
