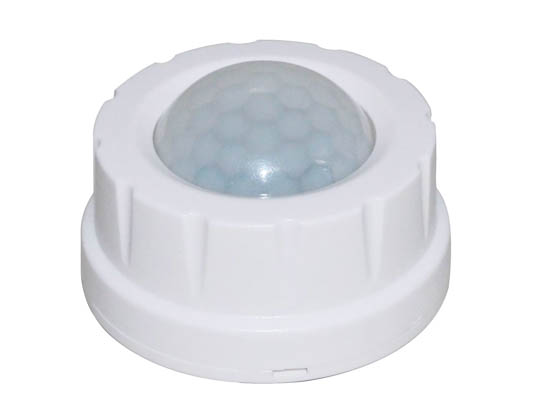

Eiko PIR Motion Sensor with Daylight Harvesting for the LLH Linear High Bay Series Fixtures

SKU: 13861 | Ordering Code: SEN5A-SPPR-WH  | UPC: 031293138613

$20.99each
Sensor
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Add 10 to your cart to get free ground shipping *

Complete Your Solution

Product Description

Eiko PIR Motion Sensor with Daylight Harvesting for the LLH Linear High Bay Series Fixtures

  • Swivel arm mount SENA-AP-WH REQUIRED for installation
  • Remote control SEN5A-ACT required for programming
  • Compatible fixtures
    • 162W Linear High Bay 11344 (LLH-2DX-40K-U)
    • 223W Linear High Bay 11346 (LLH-3DX-40K-U)
    • 425W Linear High Bay 11352 (LLH-7DX-40K-U)
  • Adjustable settings
    • Brightness 70/80/90/100% (default 100%)
    • Hold time 8 settings between 10sec to 60min (default 5min)
    • Occupancy sensitivity 20/50/75/100% (default 100%)
    • Stand-by dim level 0/10/30/50% (default 20%)
    • Stand-by time 1min/30min/60min/infinite (default 30 min)
    • Daylight threshold 10lux/30lux/50lux/100lux/500lux/disable (default disabled)
  • Recommended maximum mounting height 40ft
  • Screw-in 12-24V
  • 0-10V dimming
  • IP65 rated

Product Documents

Full Specs

Brand

Eiko
