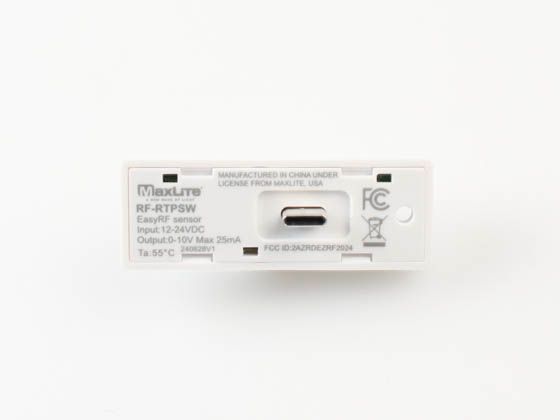

Maxlite C-MaxRF EasyRF PIR Motion Sensor/Daylight Harvesting Remote Controlled Node for Maxlite C-Max Control Ready Fixtures

SKU: 110961 | Ordering Code: RF-RTPSW  | UPC: 767627056666

$54.99each
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Order within the next 4 hours 23 minutes to ship today

Add 2 to your cart to get free ground shipping *

Description

Maxlite DIY installation:  each EasyRF sensor plugs into a MaxLite CMax controls-ready fixture with out-of-the-box presets or quick commissioning using the RF-REMOTE.

  • Easy to install with USB-C connection using pre-installed fixture receptacle
  • Compatible Maxlite Flat Panels, Troffers, and Linears:
    • Just look for the "CSCR" in the Order Code.
      • CSCR=Color Selectable Controls Ready.
  • Compatible Maxlite High Bays:
    • Just look for hte "HLS" in the Order Code.
  • Remote control RF-REMOTE is required (just one per project)  for programming.

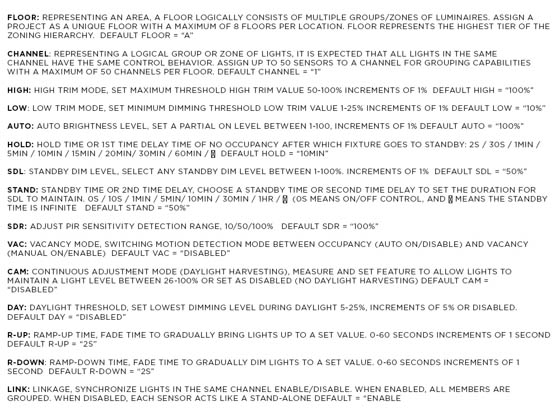

  • Remote Control Settings
    • High Trim: 50/75/100% (default 100%)
    • Motion Sensitivity Off/50%/100% (default 100%)
    • Hold Time 30sec/5min/15min/30min (default 5 minutes)
    • Bi-level Standy Dim Level 0/10/30/50% (default 50%)
    • Bi-level Standby Dim Time 10sec/5min/15min/30min/60min (default 30 minutes)
    • Photocell Sensetivity Off/Low/Medium/High (default off)

Product Documents

Full Specs

Brand

MaxLite

Product Line

C-Max EasyRF

Model Number

CN-RTPSW
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-30 to 130
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
2.3
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
0.8
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
0.8

Manufacturer Warranty

5 year limited
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Title 20 Compliant
California Building Energy Efficiency Standards for Residential and Non-Residential Buildings.
Yes
