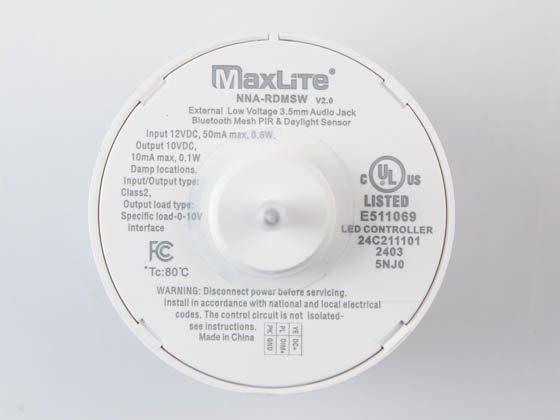

Maxlite C-Max PIR Motion Sensor/Daylight Harvesting Bluetooth Network Node For Maxlite BPHE3 UFO High Bay Control Ready Fixtures

SKU: 108688 | Ordering Code: NNA-RDMSW  | UPC: 767627033773

$79.80each
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Order within the next 2 hours 7 minutes to ship today

Add 2 to your cart to get free ground shipping *

Complete Your Solution

Subtotal: $327.78

Add 3 Items to Cart

Product Description–

Adding a field installed Network PIR motion sensor/daylight harvesting feature to Maxlite's C-Max indoor fixtures is easy with the C-Max Bluetooth Network node.

  • Compatible Maxlite C-Max Fixtures
    • BPHE3 Series Round UFO High Bays (BPHE3-U090WCSTA and BPHE3-U180WCSTA)
  • Easy to install with USB-C connection using pre-installed fixture receptacle
  • Network PIR Sensor Features
    • Daylight Harvesting: On/Off
    • Motion Sensor: On/Off
    • Photocell: On/Off
    • First Motion Time Delay: 1-59 minutes or infinite
    • Second Motion Time Delay: 1-59 minutes or infinite
    • Dim Levels: 1-100%
    • Mounting Height: 10-40ft
    • Detection Range: 80ft diameter
    • Detection Horizontal Pattern: 360 degrees
    • Detection Vertical Pattern: 90 degrees
  • Easy commissioning with Maxlite's C-Max App (Available in IOS and Android)
  • Local Bluetooth Network with no gateway needed
  • Mesh Range: 100 ft. node-to-node and 50 ft. node-to-device (Commissioning)
  • IP65 wet location rated

This Bluetooth PIR motion and daylight harvesting sensor allows for customization of individual fixtures, setting groups, multi-level dimming, scene creation, and scheduling all through the Maxlite C-Max APP.

Product Documents

Full Specs–

Brand

MaxLite

Product Line

C-Max Network Control

Model Number

NNA-RDMSW
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-40 to 130
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
1.9
Diameter (in)
Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.
2.5
Finish
The decorative finish of the item.
White

Detection Range (ft)

80

Manufacturer Warranty

5 year limited

Photocell

Yes

Motion Sensor

Yes
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Dusk to Dawn
Indicates that a lamp will self-activate when light levels dip below a certain level.
Yes
