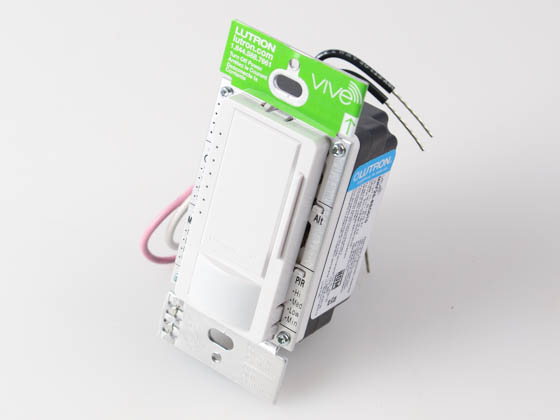

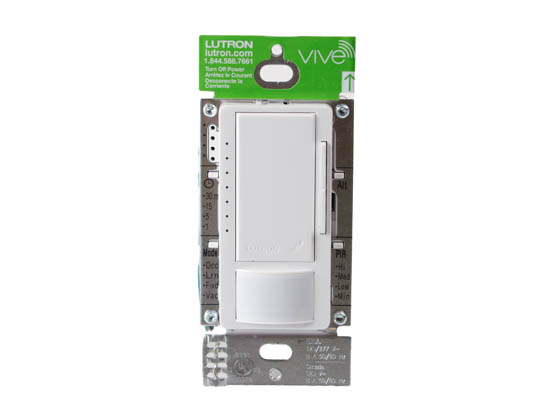

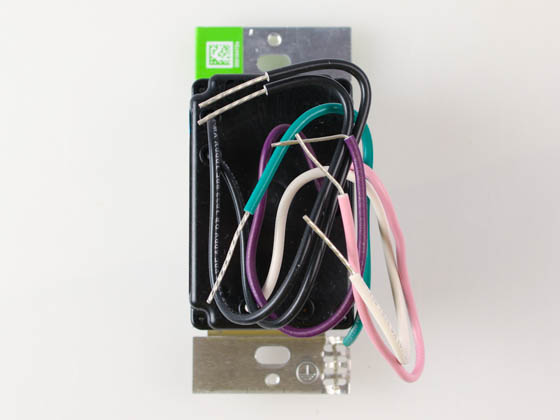

Lutron Maestro Single Pole Dimmable Occupancy Sensing Switch

SKU: MRF2S-8SD010-WH | Ordering Code: MRF2S-8SD010-WH

Pricing varies with quantity, installation and other factors. Call 1-888-455-2800 to talk to an expert: we'll put together the most affordable and efficient solution for your business needs.

Or submit the form below and we'll call you.

    Contact an Expert
    Complete Your Solution

    Product Description–

    Lutron Maestro Single Pole Dimmable Occupancy Sensing Switch

    Switches all lighting loads: Incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent and electronic fluorescent

    • Passive infrared sensor with exclusive Lutron XCT™ Technology for minor motion detection
    • 180° sensor field-of-view
    • Controls must be located within 60ft line-of-sight or 30ft through walls
    • Smart Ambient Light Detection (ALD) mode uses adaptive algorithm: Sensor learns the user's preferred light level over time
    • Can be set to Auto-On/Auto-Off or Manual-On/Auto-Off
    • Meets title 24/Title 20 requirements for multi-level lighting
    • Adjustable timeout for each circuit (1, 5, 15 or 30 minutes)
    • Sensitivity adjustment (min/low/medium/high)
    • Single-pole only
    • 8 A of lighting load per circuit at 120-277V
    • 4.4 A (1/6 HP) of fan load per circuit at 120V
    • Smart Ambient Light Detection (ALD)

    Full Specs–

    Brand

    		Lutron Electronics

    Model Number

    		MRF2S-8SD010-WH

    Line Voltage

    		120-277
    Operating Temperature (°F)
    The ambient temperature in which the product can safely operate.
    		32 to 104
    Width (in)
    For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
    		2.9
    Height (in)
    For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
    		4.7
    Depth (in)
    For fixtures and ballasts, depth is the measurement of total distance from front to back of the product in inches.
    		1.2
    Finish
    The decorative finish of the item.
    		White

    Manufacturer Warranty

    		5 year limited
    Maximum Current (Amps)
    The maximum amount of Amps that a ballast can hold.
    		8
    Compatibility
    Also known as load type, the bulb technology that a control can work with, such as LED, Fluorescent, CFL, Incandescent.
    		LED/CFL/Fluorescent

    Switch Mechanism

    		Button
    Switch Function
    The capability for controling lighting from one or more location. Single pole switches can be used for one location, 3-Way for two, and wireless controls might control multiple locations.
    		Single Pole/3-Way
    Load Rating (Volts)
    The voltage range that a control can handle.
    		120-277

    Wallplate Included

    		no
