Halco 96" Vapor Tight LED Fixture Wattage and Color Selectable Includes Control Ready Port Purchase of 4 or more required

SKU: 28112 | Ordering Code: LVPT-8-LS-CS-U  | UPC: 807154281121

Halco Lighting 28112 LVPT-8-LS-CS-U Halco 96" Vapor Tight LED Fixture Wattage and Color Selectable Includes Control Ready Port
Halco Lighting 28112 LVPT-8-LS-CS-U Halco 96" Vapor Tight LED Fixture Wattage and Color Selectable Includes Control Ready PortHalco Lighting 28112 LVPT-8-LS-CS-U Halco 96" Vapor Tight LED Fixture Wattage and Color Selectable Includes Control Ready PortHalco Lighting 28112 LVPT-8-LS-CS-U Halco 96" Vapor Tight LED Fixture Wattage and Color Selectable Includes Control Ready PortHalco Lighting 28112 LVPT-8-LS-CS-U Halco 96" Vapor Tight LED Fixture Wattage and Color Selectable Includes Control Ready Port
  • NSF
    Certified
  • Wattage
    Selectable
  • Color
    Selectable
$199.00each

(Purchase of 4 or more required)

Fixtures (min 4)
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

On BackorderTypically ships in 10-15 business days
We may already have more on the way or, in most cases, we can ship directly from the manufacturer. Call 888-455-2800 and one of our Lighting Specialists will help to complete your order.

Add 1 to your cart to get free ground shipping *

Options

Length (in)
24 48 96

Product Highlights

  • Estimated life of 91.3 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Complete Your Solution

Product Description

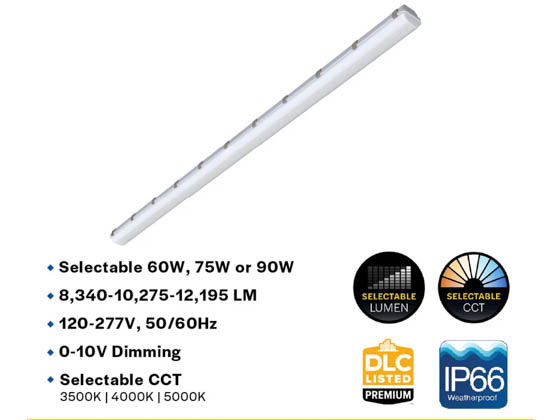

Halco dimmable 96' LED Vapor Tight fixture is wattage selectable (60W/75W/90W) and color selectable (3500K/4000K/5000K).

  • 3-way wattage and color selectable
    • Wattage selectable (60W/75W/90W)
    • Color selectable (3500K/4000K/5000K)
  • Includes control ready port
  • Programmable sensor 90552 (sold separate)
    • Control settings
      • Motion Sensitivity 25/50/75/100% (default 100%)
      • Hold Time 8 settings between 5sec-30min (default 5 seconds)
      • Bi-level Standy Dim Level 10//20/30/50% (default 10%)
      • Bi-level Standby Dim Time 8 settings betwen off-60min (default off)
      • Photocell Sensitivity disabled/2/10/30/50/80/120Lux (default disabled)
  • Programming remote control 90555 (sold separate)

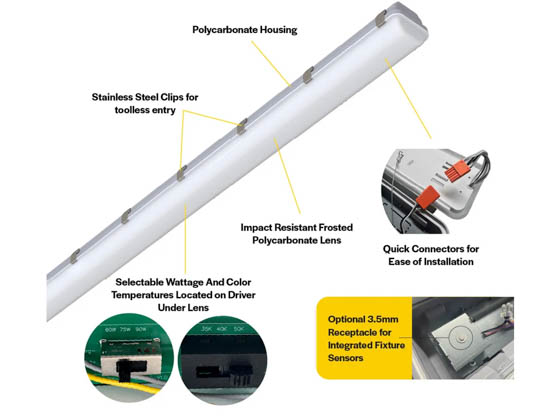

  • Non-corrosive one piece (PC) polycarbonate housing and frosted lens

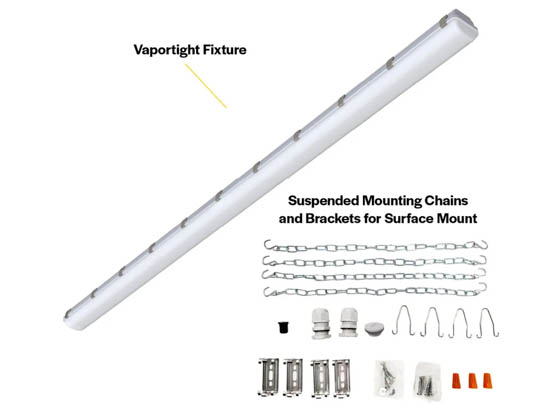

  • Includes suspended mounting chains and surface mount brackets
  • NSF/ANSI 2 Listed
  • NEMA4X rated
  • 0-10V dimming
  • IP66 rated wet location rated
  • 5-year limited warranty

Product Documents

Full Specs

Brand

Halco Lighting

Model Number

LVPT-8-LS-CS-U
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
60/75/90 Watts
Fluorescent Equivalent
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
96/108/128/192/216/256

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3500/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3500
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
8340/10275/12195
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
100000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-40 to 113
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
96
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
4.8
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
3.7
Nominal Length (ft)
The length to the nearest foot (or half foot in particular cases) that linear bulbs or fixtures will fit.
8
Finish
The decorative finish of the item.
Gray

Housing

Polycarbonate

Mounting

Surface/Suspended

Manufacturer Warranty

5 year limited
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes

Vapor Proof

Yes
Food Equipment Certification
The NSF (National Science Foundation) establishes minimum food protection and sanitation requirements for the materials, design, fabrication, construction and performance of food handling and processing equipment. The ETL (Edison Testing Laboratories) Mark is proof of product compliance to North American safety standards.
NSF
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes
Controls Ready
Indicates whether a fixture is capable of taking an integrated motion or light control, although the control is not included in the product itself.
Yes
