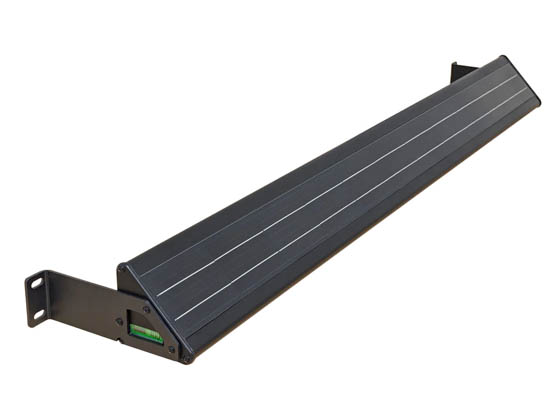

Solar 4FT Off-Grid LED Sign Light - 20W, 2000LM, IP65, IK08, 4000K/5000K - Led Living Technology

SKU: LLTVSB-20CS-BC | Ordering Code: LLTVSB-20CS-BC

LED Living Technology LLTVSB-20CS-BC Solar 4FT Off-Grid LED Sign Light - 20W, 2000LM, IP65, IK08, 4000K/5000K - Led Living Technology
LED Living Technology LLTVSB-20CS-BC Solar 4FT Off-Grid LED Sign Light - 20W, 2000LM, IP65, IK08, 4000K/5000K - Led Living TechnologyLED Living Technology LLTVSB-20CS-BC Solar 4FT Off-Grid LED Sign Light - 20W, 2000LM, IP65, IK08, 4000K/5000K - Led Living TechnologyLED Living Technology LLTVSB-20CS-BC Solar 4FT Off-Grid LED Sign Light - 20W, 2000LM, IP65, IK08, 4000K/5000K - Led Living TechnologyLED Living Technology LLTVSB-20CS-BC Solar 4FT Off-Grid LED Sign Light - 20W, 2000LM, IP65, IK08, 4000K/5000K - Led Living Technology
  • Color
    Selectable
$595.95each
Fixture
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

Ships from SupplierUsually ships in 1-3 business days.

This item qualifies for free ground shipping *

Product Highlights

  • Energy efficient replacement for a 150 watt HID bulb
  • Estimated life of 45.7 years based on 3 hours use per day
  • Adjustable color

Product Description

Solar off-grid 4FT sign or building light fixture with 2,000 lumen output is the most cost-effective way to light up an area without having the added expense of trenching. The on/off photocell activates the fixture exactly when needed. Designed to keep commercial spaces lit with a clean sleek appearance.

Ideal for signage, landscaping, billboards, advertisements and more.

  • Includes booster solar panel connection if additional solar panels are needed in under lit areas.
  • Additional solar panel boosters
    • LLTASB-SP10: 10W, 6V, 1.6A, 2M Cable
    • LLTASB-SP25BF: 25W, Bifacial, 6V, 4.5A, 2M Cable
  • Comparable to a 150 watt HID
  • Charging time typically 6-8 hours
  • Working Mode: first 4 hours 100% brightness and then dims to 25% brightness until dawn
  • Photocell for dusk-to-dawn operation
  • Surface mount
    • Adjustable clamp bracket LLTASB-BKCL3 (sold separate)
  • Operating temperature -4°F to 149°F degrees
    • Battery charging temp 32°F to 113°F
  • Die-cast aluminum housing with polycarbonate lens
  • IK08 rated
  • IP65 wet location rated
  • 3-year limited warranty

Solar fixture performance is heavily influenced by the environment. Sun light level, extreme temperatures, snow and dirt will affect performance.

Product Documents

Full Specs

Brand

LED Living Technology

Product Line

SB Series

Model Number

LLTVSB-20CS-BC
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
20 Watts
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
150
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
4000
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
2000
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
50000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-4 to 149
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
48
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
4
Nominal Length (ft)
The length to the nearest foot (or half foot in particular cases) that linear bulbs or fixtures will fit.
4
Finish
The decorative finish of the item.
Black

Manufacturer Warranty

3 year limited

Solar Powered

Yes

Photocell

Yes
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Dusk to Dawn
Indicates that a lamp will self-activate when light levels dip below a certain level.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
