Archipelago Navigator LED Garage Canopy LED Fixture Wattage (60/80/100W) and Color Selectable Includes Control Ready Port

SKU: LCNP3W100-3N1 | Ordering Code: LCNP3W100-3N1

Archipelago Lighting LCNP3W100-3N1 Archipelago Navigator LED Garage Canopy LED Fixture Wattage (60/80/100W) and Color Selectable Includes Control Ready Port
Archipelago Lighting LCNP3W100-3N1 Archipelago Navigator LED Garage Canopy LED Fixture Wattage (60/80/100W) and Color Selectable Includes Control Ready PortArchipelago Lighting LCNP3W100-3N1 Archipelago Navigator LED Garage Canopy LED Fixture Wattage (60/80/100W) and Color Selectable Includes Control Ready Port
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable
  • Clearance
$89.99$62.99each
You save 30%
Fixture
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

Clearance ItemOnly 6 left in stock. Will not be re-stocked. Typically ships within one business day.

Add 4 to your cart to get free ground shipping *

Product Highlights

  • Energy efficient replacement for a 750 watt HID bulb
  • Estimated life of 45.7 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Complete Your Solution

Product Description

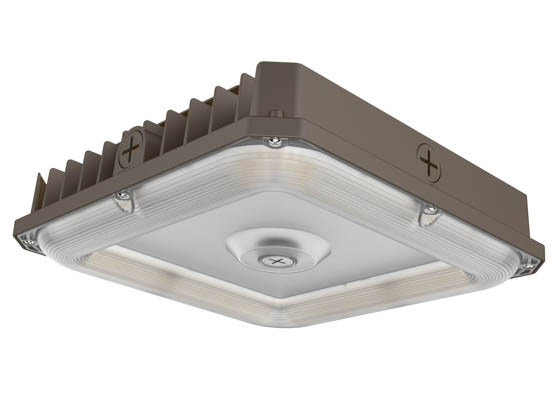

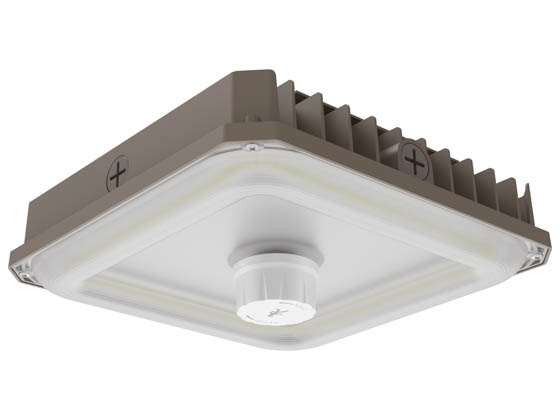

The Archipelago LCNP Navigator LED garage canopy LED fixture is wattage (60W/80W/100W) and color selectable (3500K/4000K/5000K). This fixture is also control ready with the optional PIR bi-level sensor or the blueArch bluetooth controls.

  • 3 wattage and 3 color selectable
    • Wattage 60/80/100W
    • Color 3500/4000/5000K
  • Control ready (sold separately)

    • Bi-level Microwave Motion Sensor (MSM-HTO/07P3/BLS)

    • Remote control (RM-HT/06S)

    • blueARCH Bluetooth Network Microwave Motion Sensor (MSP-SRO/903P3/NLC)

  • Low profile rugged on-piece die-cast aluminum body
  • 140 degree beam angle
  • Optional emergency battery backup available
  • Pendant mounting or direct surface mounting, ceiling or wall. Can be mounted on multiple types of J-boxes
  • UV-Stabilized polycarbonate lens provides vandal resistance and improved light dispersion
  • 0-10V dimming
  • UL wet location rated

Product Documents

Full Specs

Brand

Archipelago Lighting

Product Line

Navigator

Model Number

LCNP3W100-3N1
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
60/80/100 Watts
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
750

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3500/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3500
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
7200/9600/12000
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
50000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-40 to 104
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
10.06
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
10.06
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
2.73
Finish
The decorative finish of the item.
Dark Bronze

Housing

Die-Cast Aluminum

Mounting

Pendant/J-Box/Surface

Manufacturer Warranty

5 year limited
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes
Controls Ready
Indicates whether a fixture is capable of taking an integrated motion or light control, although the control is not included in the product itself.
Yes

DLC Listing

S-WGTYHX Premium
