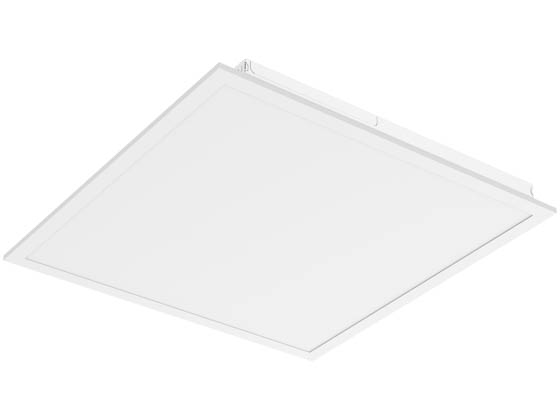

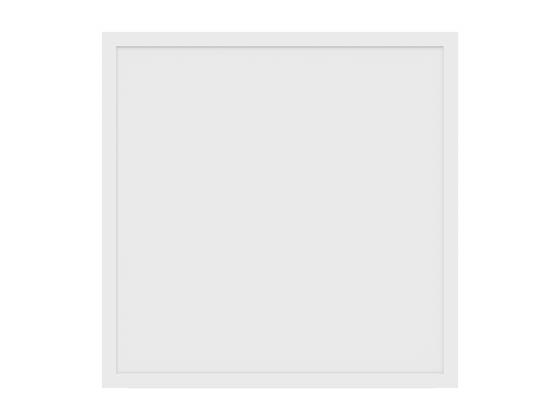

Archipelago 2x2 Flat Panel LED Fixture Wattage and Color Selectable Integrated Control Ready With Emergency Battery Backup

SKU: LBLP22-V54-EM08 | Ordering Code: LBLP22-V54-SR-EM08  | UPC: 819313020304

Sorry, this product is not available to purchase.

Options

Brightness (Lumens)
3250 3900 4500 5200 6500
Length (in)
48

Product Highlights

  • Estimated life of 68.5 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Description
  • DLC
    Listed
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable

The Archipelago LBLP ventiARCH Series 2x2 LED flat panel is dimmable, wattage (20W/25W/30W/35W/40W) and color selectable (3000K/3500K/4000K/5000K). This fixture is also control ready for basic bi-level microwave or PIR motion sensor and is also blueARCH Bluetooth network compatible (sensors sold separately). Includes emergency battery backup.

  • 5-way power and 4-way kelvin (CCT) switches
    • Wattage selectable - 20W, 25W, 30W, 35W and 40W
    • Color selectable - 3000K, 3500K, 4000K and 5000K
  • Control ready (sold separately)
    • Bi-level Microwave motion sensor (MSM-HTI/08P1/BLS)
    • Bi-level PIR motion sensor (MSP-HTI/08P1/BLS)
    • Remote control (RM-HT/06S)
    • blueARCH Bluetooth Network Microwave motion sensor (MSM-HTI/08P1/NLC)
    • blueARCH Bluetooth Network PIR motion sensor (MSP-HTI/08P1/NLC)

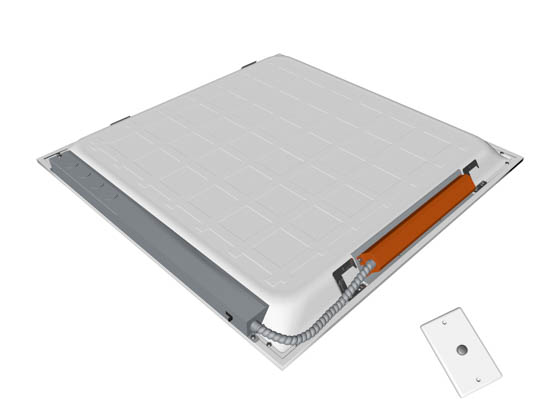

  • Emergency battery backup included
    • 8w 90min with 24hr recharge
  • Recessed in T-bar grid ceilings with integral earthquake clips for secure attachment
  • White aluminum frame with frosted PMMA lens prevents yellowing
  • Excellent color consistency and superior lumen maintenance
  • Built-in seismic hooks standard
  • 0-10V dimming

Product Documents

Full Specs

Brand

Archipelago Lighting

Product Line

ventiARCH

Model Number

LBLP22-V54-EM08
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
20/25/30/35/40 Watts
Fluorescent Equivalent
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
54/96

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3000/3500/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3000
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
2600/3250/3900/4500/5200
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
75000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-10 to 125
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
24
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
24
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
2
Nominal Length (ft)
The length to the nearest foot that linear bulbs or fixtures will fit.
2
Nominal Width (ft)
The width to the nearest foot that fixtures will fit.
2
Finish
The decorative finish of the item.
White

Housing

Die-formed one piece

Manufacturer Warranty

7 year limited
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Battery Backup
Has a backup battery to allow it to continue functioning in case of power failure.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes
Controls Ready
Indicates whether a fixture is capable of taking an integrated motion or light control, although the control is not included in the product itself.
Yes

DLC Listings

S-HJ4FK6 Premium, S-JNROF1 Standard
