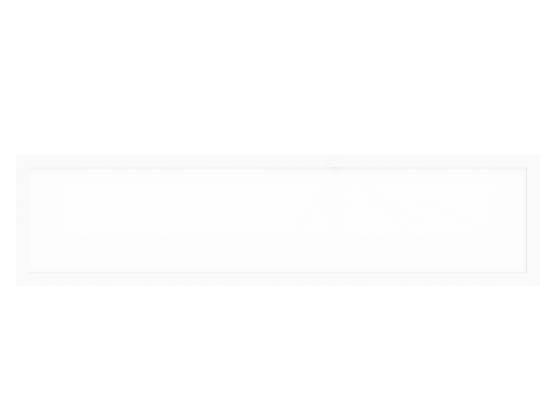

Archipelago 1x4 Flat Panel LED Fixture Wattage and Color Selectable (Pack of 2)

SKU: LBLP14-S3 | Ordering Code: LBLP14-S3

$87.98($43.99 per Fixture)
Pack of 2
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Add 2 packs to your cart to get free ground shipping *

Product Highlights

  • Estimated life of 45.7 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Description
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable

Archipelago LBLP selectARCH Series dimmable wattage and color selectable 1x4 ft. LED back lit flat panel fixture has integrated switches to easily change power output and kelvin (CCT). Constructed of rugged cold-rolled steel, post painted with a highly diffused white finish.

  • 3-way power and 3-way kelvin (CCT) switches
    • Wattage selectable - 25W, 30W, 36W
    • Color selectable - 3500K, 4000K and 5000K
  • Recessed in T-bar grid ceilings with integral earthquake clips for secure attachment
  • Rated for IC installations
  • White aluminum frame with frosted PMMA lens prevents yellowing
  • Slim profile for shallow ceilings
  • Built-in seismic hooks standard
  • Excellent color consistency and superior lumen maintenance
  • The driver is located on the edge of the panel which provides a thinner fixture but also reduces the size of the wiring compartment
  • 0-10V dimming

Product Documents

Full Specs

Brand

Archipelago Lighting

Product Line

selectARCH

Model Number

LBLP14-S3
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
25/30/36 Watts
Fluorescent Equivalent
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
54-74

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3500/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3500
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
3250/3900/4500
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
50000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-10 to 125
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
48
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
12
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
1.4
Nominal Length (ft)
The length to the nearest foot that linear bulbs or fixtures will fit.
4
Nominal Width (ft)
The width to the nearest foot that fixtures will fit.
1
Finish
The decorative finish of the item.
White

Housing

Die-formed one piece

Manufacturer Warranty

5 year limited
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
DLC Listing
Approved by the DesignLights Consortium, a collaboration of utility companies and regional energy efficiency organizations. Approved products meet the consortium's standards for ensuring high-quality, energy-efficient lighting design. There are three categories, Standard, Premium and Horticultural, plus Luna for light-pollution minimization.
S-2IZY3B Premium
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes
