Emergency Fluorescent Ballasts

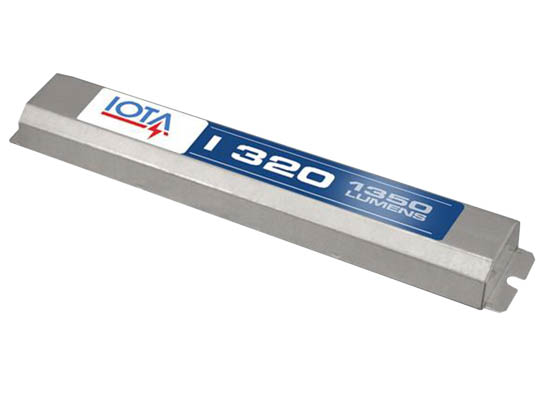

Iota 3.5W, 120V or 277V Emergency Battery Backup Ballast For T8 and T5 Lamps

SKU: I320 TBTS M20 | Ordering Code: I320 TBTS M20

$299.99each
Ballast
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

This item qualifies for free ground shipping *

Product Highlights

  • Ignites one T8/T5 lamp

Product Description–

Iota 3.5W, 120V or 277V Emergency Battery Backup Ballast For T8 and T5 Lamps



  • I320 TBTS M20 Emergency Ballast ignites:
    • 2 foot - 4 foot single and bipin T8 HO and VHO lamps
    • 2 foot - 4 foot  14W to 54W T5 lamps
  • In the event of power failure the ballast switches to the emergency mode and operates one of the existing lamps for 90 minutes

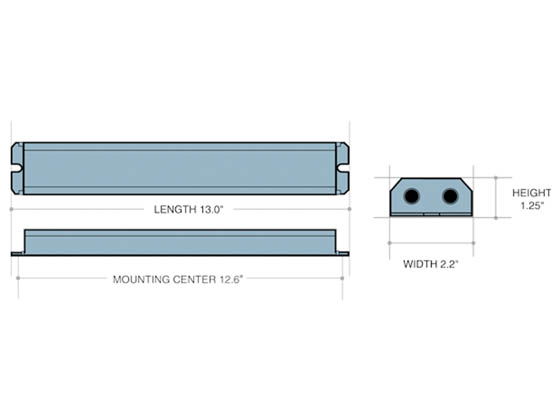

  • 13" x 2.2" x 1.25" reduced profile design is ideal for smaller ballast compartments
  • AC output for compatibility with low mercury content amalgam lamps
  • Time Delay feature for compatibility with End-Of-Life circuitry
  • Open circuit isolation protects unit when load is absent
  • Will cold start and operate all specified lamps
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes test switch and charge indicator accessory kit
  • For use with switched or unswitched fixtures
  • Rated for use in damp locations, plenum, and enclosed and gasketed fixtures
  • 5 year manufacturers warranty



Full Specs–

Brand

Iota Engineering, Inc

Model Number

I320 TBTS M20
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
3.5 Watts

Input Volts

120/277
Initial Lumen Output
The lumen output at first start-up.
1350
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
32 to 122

Number of Lamps

1
Ballast Type
Magnetic ballasts are a legacy technology and use inductance to transform the line voltage to the voltage required to "fire" or excite the gasses in a lamp. Electronic ballasts use a variety of starting methods, and are more efficient than magnetic ballasts in converting input power to the proper lamp power and operate fluorescent lamps at higher frequencies, resulting in an overall lamp-ballast system – increasing efficacy 15% to 20% over a magnetic equivalent.
Emergency

Battery

24 Hour Recharge
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
13
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
2.2
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
1.25

Manufacturer Warranty

5 year limited
Ballast Lamp Type
The type of bulb the ballast can fire.
T8/T5
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
