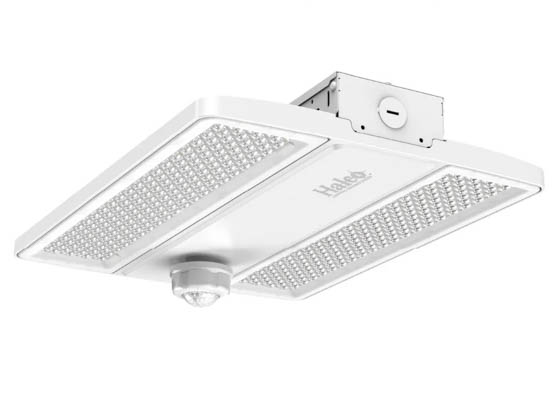

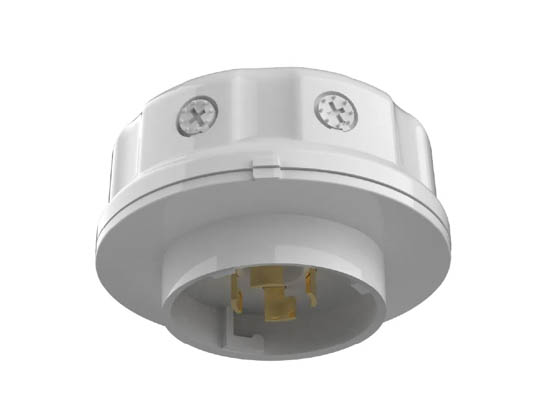

Halco Bi-Level PIR Motion and Daylight Sensor for the CLHB Series High Bay Fixtures (programming remote 90555 sold separate)

SKU: 24982 | Ordering Code: HSN-SEN-PIR-DAY-010-Z10-WH  | UPC: 807154249824

$24.99each
Sensor
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Add 8 to your cart to get free ground shipping *

Complete Your Solution

Subtotal: $600.94

Add 6 Items to Cart

Product Description–

Halco Bi-Level PIR Motion and Daylight Sensor for the CLHB Series High Bay Fixtures (programming remote 90555 sold separate)

  • Compatible fixtures
    • CLHB-1-LS-CS-U (90/110/130W)
    • CLHB-2-LS-CS-U (125/150/165W)
    • CLHB-3-LS-CS-U (180/200/220W)
    • CLHB-4-LS-CS-U (240/280/320W)
  • Remote Control Settings
    • Motion Sensitivity 25%/50%/75%/100% (default 100%)
    • Hold Time 5sec/30sec/1min/3min/5min/10min/20min/30min (default 10 min)
    • Bi-level Standy Dim Level 10%/20%/30%/50% (default 10%)
    • Bi-level Standby Dim Time Infinite/10sec/30sec/1min/5in/10min/30min/60min (default infinite)
    • Photocell Sensitivity 12 settings from disabled to 400lux (default disabled)
  • Remote Control required for programming this sensor (90555)

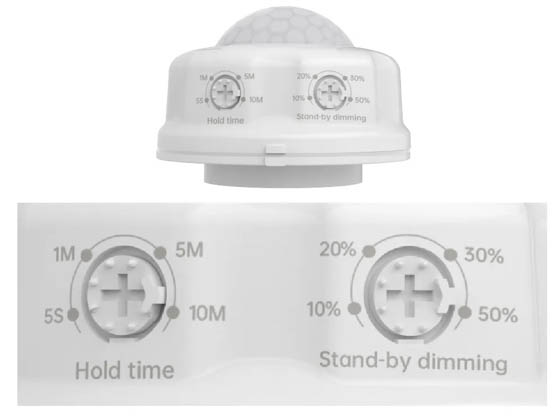

  • Rotatable Switch Settings
    • Detection Area default 100%
    • Hold Time 5s/1min/5min/10min
    • Daylight disabled
    • Bi-Level Standy Dim Level 0%/10%/20%/30%
    • Bi-Level Standby Time default infinite



Product Documents

Full Specs–

Brand

Halco Lighting

Model Number

HSN-SEN-PIR-DAY-010-Z10-WH
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
0.9
Diameter (in)
Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.
2.2
Finish
The decorative finish of the item.
White

Photocell

Yes

Motion Sensor

Yes
Dusk to Dawn
Indicates that a lamp will self-activate when light levels dip below a certain level.
Yes
