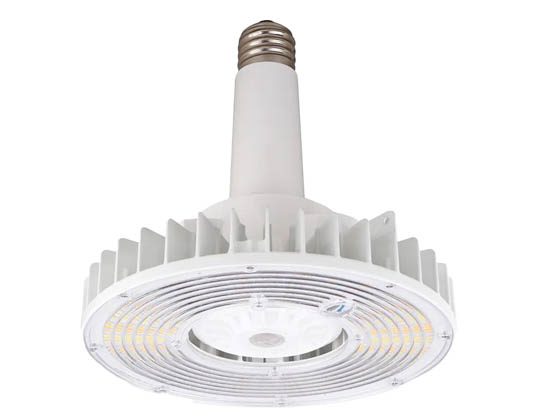

Westgate Wattage & Color Selectable LED High Bay Lamp, 12,000-18,000 Lumens

SKU: HBL-80-120W-MCT-E39 | Ordering Code: HBL-80-120W-MCT-E39 | UPC: 845060092486

Westgate HBL-80-120W-MCT-E39 Wattage & Color Selectable LED High Bay Lamp, 12,000-18,000 Lumens

Printer friendly

Wattage
Selectable
Color
Selectable

$138.99each

Bulb

Add to Cart

Save to BulbTrack

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

Ships from SupplierUsually ships within one business day.

Add 2 to your cart to get free ground shipping *

Options

Brightness (Lumens)

12000 15000 18000 18000 21000 24000

Length (in)

9.21 10.23

Product Highlights

Estimated life of 45.7 years based on 3 hours use per day
No lead or mercury means easy and environmentally safe disposal
Adjustable color
Adjustable wattage

Product Description–

The HBL-80-120W-MCT-E39 LED High Power Lamp is an energy-efficient HID replacement delivering up to 18,000 lumens with selectable 80W, 100W, or 120W output and 3000K, 4000K, or 5000K color temperatures. E39 mogul base, and a 50,000-hour lifespan, it is ideal for high bay retrofit applications in warehouses, industrial facilities, and commercial spaces.

Ideal for retrofitting existing HID high bay fixtures
Color selectable via switch on lamp 3000K/4000K/5000K
Selectable power - 80/100/120 watts
Total lumens 12,000/15,000/18,000
Cannot be installed in enclosed luminaries
Suitable for damp locations

Product Documents

Manufacturer Spec Sheet

Full Specs–

Brand	Westgate
Energy Used A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.	80/100/120 Watts
Volts A measure of "electrical pressure" between two points. The voltage specification of an incandescent lamp is the electrical "pressure" required to drive it at its designed point. The "voltage" of a ballast (e.g. 120 V) refers to the line voltage coming from the power source and is connected to the ballast.	120-277
Base The end (or ends) of the lamp that fits into the socket.	Mogul (E39)
Bulb Color The color of the light produced by a bulb	Soft White/Cool White/Bright White
CRI Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.	80
Color Temperature (Kelvin) An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).	3000/4000/5000
Lowest Color Temperature (Kelvin) The warmest color temperature that can be set for a color-tuneable product.	3000
Highest Color Temperature (Kelvin) The coolest color temperature that can be set for a color-tuneable product.	5000
Brightness (Lumens) A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.	12000/15000/18000
Bulb Finish The surface finish of a bulb, which may affect the quality of the light emitted.	Clear

Bulb Technology The technology implemented by the bulb, e.g. incandescent, halogen, LED	LED
Average Rated Life (hr) A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.	50000
Operating Temperature (°F) The ambient temperature in which the product can safely operate.	-4 to 122
Beam Angle (°) The width of a light beam, expressed in degrees. The beam angle is often part of the ordering code for reflector lamps. For example, a 50PAR30/HIR/NFL25 is a 50-watt PAR30 narrow flood lamp with a beam angle of 25 degrees.	100
Bulb Power Type Defines how a lamp is powered, whether it needs a ballast or not, or can use either	Ballast Bypass
Length (in) Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.	9.21
Diameter (in) Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.	9.05
Manufacturer Warranty	5 year limited
Damp Location Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment	Yes
Color Selectable Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.	Yes

Questions & Answers+

FAQ

What does Color Selectable mean?

Color selectable technology in commercial lighting allows users to adjust the color temperature of the light emitted by an LED bulb or fixture. This is typically achieved through the use of tunable white LEDs, which can produce a range of colors from warm white to cool daylight. A simple switch is used to set the bulb or fixture to the preferred color temperature. This flexibility provides a significant advantage over traditional lighting systems, which often have a fixed color temperature.

A primary benefit of color selectable lighting is its ability to enhance occupant comfort and well-being. Studies have shown that exposure to different color temperatures can have a significant impact on mood, alertness, and productivity. For example, warmer colors can create a more relaxed and inviting atmosphere, while cooler colors can promote alertness and focus. By allowing users to adjust the color temperature to their preference, color selectable lighting can create a more personalized lighting experience.

Color selectable technology offers a range of practical applications in commercial settings and by offering multiple color options within a single fixture, businesses can reduce the number of different fixtures they need to stock, streamlining procurement and maintenance processes. Another key benefit of color selectable LED light fixtures is for building owners and managers that want to provide tenants with options without the need to change out entire fixtures. Businesses and building owners can create more dynamic and adaptable lighting environments that meet the unique needs and preferences of their occupants.

What does Wattage Selectable mean?

Wattage selectable technology in commercial lighting allows for flexible and efficient illumination by enabling the adjustment of a fixture's power output. This is typically achieved through a simple internal switch or driver that allows the user to select from multiple wattage options within a single fixture.

This technology enhances energy efficiency by allowing businesses to set a maximum energy usage limit based on the specific needs of a space, even though the fixture may be capable of a higher output. It also simplifies inventory management for contractors or maintenance departments. By offering multiple wattage options within a single fixture, businesses can reduce the number of different fixtures they need to stock, streamlining procurement and maintenance processes. Another key benefit of wattage selectable LED light fixtures is for building owners and managers that want to provide tenants with adequate lighting while also reducing their energy usage.
