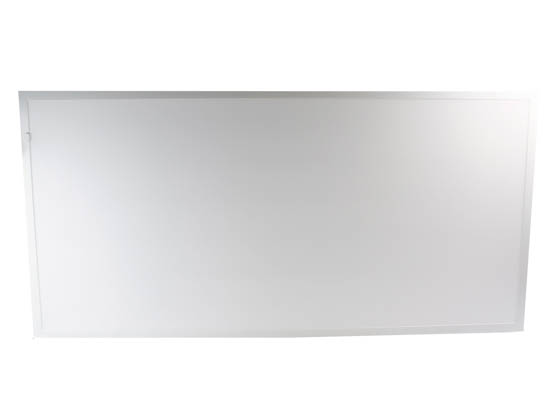

ATG Electronics DUO 2x4 Flat Panel LED Fixture Wattage and Color Selectable, Controls Ready Minimum 4 per Order

SKU: FPBL24-30W-T1-RU-E | Ordering Code: FPBL24-30W-T1-RU-E

$49.99each
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Add 2 to your cart to get free ground shipping *

Options

Length (in)
23.8 47.8

Product Highlights

  • Estimated life of 91.3 years based on 3 hours use per day
  • Adjustable color

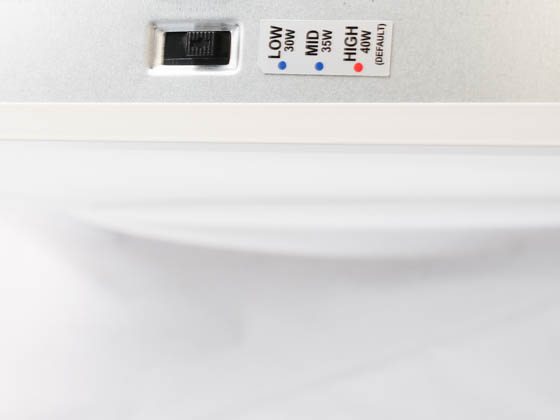

  • Adjustable wattage
Description
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable

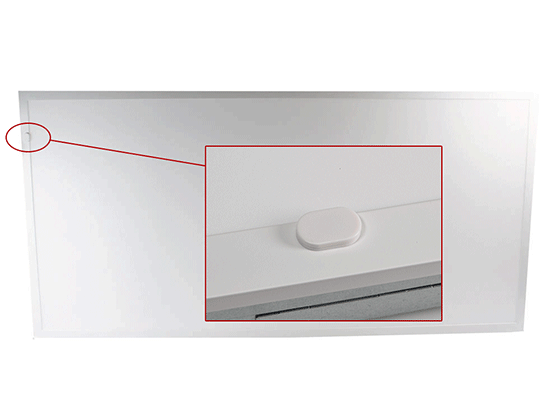

ATG Electronics DUO brand dimmable 2x4 Flat Panel LED fixture is wattage-(30W/40W/50W) and color-selectable (3500K/4000K/5000K).  The panel is also ready for easy install of the OPTIONAL motion/daylight sensor if that's your want or need. You can decide Day 1 or some time in the future to use the built-in, single-pin receptacle to install the ANT-1P-4T control node (SOLD SEPARATELY) for additional energy savings and/or customized lighting.

Ideal for drop ceilings in offices or retail applications.  If sensors are added, users can dim or turn off individual fixtures to suit specific needs..

  • 3-Way wattage and color selectable
    • Wattage Selectable (30W/40W/50W)
    • Color Selectable (3500K/4000K/5000K)
  • Control Ready (sold separately)
    • ANT-1P-4T (PIR motion sensor with daylight harvesting)
    • ATG-RC-100 (Remote control for programming ANT-1P-4T sensor)
  • Can be surface mounted with the use of a 2X4 surface mount kit (sold separately)
  • Emergency battery backup available STB45FA-O8WLi-170 (sold separately)
  • Fits standard T-bar and narrow grid drop ceilings
  • The driver is located on the edge of the panel in a Slim J-Box which provides a thinner fixture but also reduces the size of the wiring compartment
  • Dimmable via 0-10V wiring to a wall dimmer OR the use of ANT-1P-4T control node (sold separately)
  • Frame - Aluminum post painted white
  • 5-year limited warranty

Product Documents

Full Specs

Brand

ATG Electronics

Product Line

DUO

Model Number

FPBL24-30W-T1-RU-E
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
30/40/50 Watts
Fluorescent Equivalent
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
96/128

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3500/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3500
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
3990/5232/6331
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
100000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
14 to 104
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
47.8
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
23.8
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
1.8
Nominal Length (ft)
The length to the nearest foot that linear bulbs or fixtures will fit.
4
Nominal Width (ft)
The width to the nearest foot that fixtures will fit.
2
Finish
The decorative finish of the item.
White

Housing

Metal back panel

Manufacturer Warranty

5 years limited
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes
Controls Ready
Indicates whether a fixture is capable of taking an integrated motion or light control, although the control is not included in the product itself.
Yes

DLC Listing

S-QRE2XB Premium
