TCP UFO High Bay Fixture Wattage (115/155/200W) & Color Selectable Includes Control Ready Port

SKU: EUFOUZDSW4CCT | Ordering Code: EUFOUZDSW4CCT

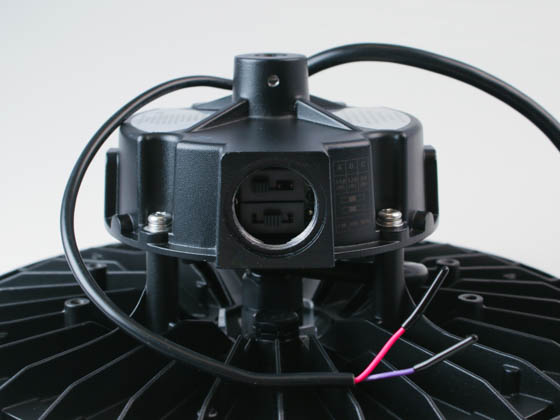

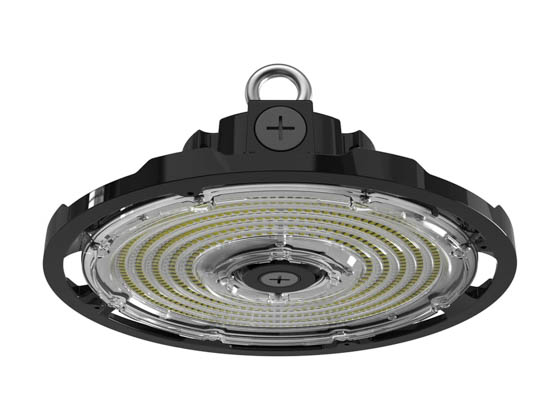

TCP EUFOUZDSW4CCT UFO High Bay Fixture Wattage (115/155/200W) & Color Selectable Includes Control Ready Port
TCP EUFOUZDSW4CCT UFO High Bay Fixture Wattage (115/155/200W) & Color Selectable Includes Control Ready PortTCP EUFOUZDSW4CCT UFO High Bay Fixture Wattage (115/155/200W) & Color Selectable Includes Control Ready Port
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable
$79.99each
Fixture
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Order within the next 32 minutes to ship today

Add 3 to your cart to get free ground shipping *

Options

Brightness (Lumens)
19800 25500 25500 32000 33000 38500 40500 45000 51000

Product Highlights

  • Energy efficient replacement for a 150/175/250/400 watt HID bulb
  • Estimated life of 45.7 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Complete Your Solution

Product Description

TCP wattage selectable (115W/155W/200W) and color selectable (4000K/5000K) LED UFO High Bay Fixture is equivalent up to a 250 watt HID fixture. Primary applications include warehousing, commercial facilities, manufacturing facilities and gymnasiums.

  • 3-way wattage and 2-way color selectable
    • Wattage selectable (115W/155W/200W)
    • Color selectable (4000K/5000K)
  • Compatible sensor
    • Microwave motion sensor (EUFOMS1)
    • Remote control for programming sensor (ISREMOTE)
  • Adjustable settings
    • Brightness 70/80/90/100% (default 100%)
    • Hold time 8 settings between 10sec to 60min (default 5min)
    • Occupancy sensitivity 20/50/75/100% (default 100%)
    • Stand-by dim level 0/10/30/50% (default 20%)
    • Stand-by time 1min/30min/60min/infinite (default 30 min)
    • Daylight threshold 10lux/30lux/50lux/100lux/500lux/disable (default disabled)
  • Recommended mounting height 40' - 60'
  • IK10 rating eliminates the need for a wireguard
  • Polycarbonate lens
  • Finish is powder coated, post-painted black
  • Easy to install with included hanging hook
  • 6' power cord included
  • IP65 wet rated
  • 0-10V dimming

Full Specs

Brand

TCP

Model Number

EUFOUZDSW4CCT
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
115/160/200 Watts
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
150/175/250/400

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
4000
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
19800/25500/32000
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
50000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-4 to 122
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
5.9
Diameter (in)
Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.
11
Finish
The decorative finish of the item.
Black

Housing

Die-cast aluminum

Mounting

Hook

Manufacturer Warranty

5 year limited
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes
Controls Ready
Indicates whether a fixture is capable of taking an integrated motion or light control, although the control is not included in the product itself.
Yes

DLC Listing

S-2R1D96 Premium
