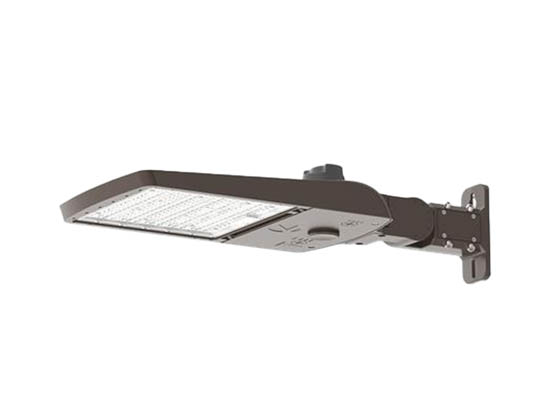

Acuity Lithonia Contractor Select EAX Series LED Area Light Selectable Wattage (34/48/63/85/111W), Color, & Beam Angle Includes Universal Pole Mount & Control Ready Port

SKU: 292P6U | Ordering Code: EAX1 ALO SWW2 SO UVOLT UPM PER DDB  | UPC: 00198934597748

Lithonia Lighting 292P6U EAX1 ALO SWW2 SO UVOLT UPM PER DDB Acuity Lithonia Contractor Select EAX Series LED Area Light Selectable Wattage (34/48/63/85/111W), Color, & Beam Angle Includes Universal Pole Mount & Control Ready Port
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable
$249.99each
Fixture
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

Ships from SupplierUsually ships within one business day.

This item qualifies for free ground shipping *

Options

Product Highlights

  • Energy efficient replacement for a 100/175/250/400 watt HID bulb
  • Estimated life of 91.3 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Complete Your Solution

Product Description

Acuity Lithonia Contractor Select EAX Series LED Area Light Selectable Wattage, Color, & Beam Angle with Universal Pole Mount & Control Ready Port

  • Wattage, color & beam angle are all controlled by simple switches on the fixture
    • 5-way wattage selectable (34W, 48W, 63W, 82W, & 111W)
    • 4-way beam selectable (T2, T3, T4, &T5)
    • 3-way color selectable (3000K, 4000K, & 5000K)
  • Includes universal mount
    • Arm mount round & square poles
    • Slip fitter tenon mount for 2 3/8" tenon
  • Includes photocell recepitcle with shortening cap (photocell 220XM7 sold separate)
  • Includes control ready port for Lithonia nLight network controls (sold separate)
  • Die-cast aluminum housing
  • Built-in 6kV surge protection
  • 0-10v dimming
  • IP66 wet location rated
  • 5-year limited warranty

Product Documents

Full Specs

Brand

Lithonia Lighting

Model Number

EAX1 ALO SWW2 SO UVOLT UPM PER DDB
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
34/48/63/82/111 Watts
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
100/175/250/400

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
70
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3000/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3000
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
5638/7934/10259/13218/16888
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
100000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-22 to 104
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
21.24
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
11.81
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
6.69
Finish
The decorative finish of the item.
Bronze

Housing

Aluminum

Mounting

Slipfitter/Arm

Manufacturer Warranty

5 year limited
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Adjustable Beam Angle
The fixture incorporates a mechanism to adjust the spread of the beam.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes
Controls Ready
Indicates whether a fixture is capable of taking an integrated motion or light control, although the control is not included in the product itself.
Yes

DLC Listing

S-540FLY Premium
