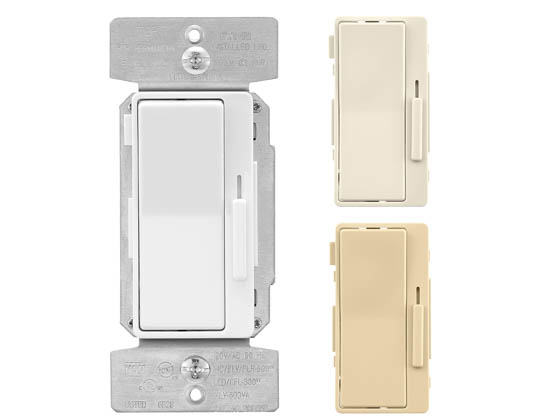

Eaton Universal Decorator Single-Pole/3-way LED Dimmer, Preset White/Ivory/Light Almond

SKU: DUL06P-C2 | Ordering Code: DUL06P-C2  | UPC: 032664760723

$41.99each
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Order within the next 2 hours 50 minutes to ship today

Add 3 to your cart to get free ground shipping *

Description

Eaton Universal Decorator Single-Pole/3-way Dimmer, Preset White/Ivory/Light Almond

  • Provides full-range classic linear-slide dimming for 300W dimmable LED and CFL
  • Provides 600W dimming  on incandescent, halogen, dimmable fluorescent, ELV and MLV light sources
  • Removable faceplate for changing colors (faceplates included)
  • Designed for both single pole and 3-way applications
  • Back and side wiring
  • Neutral is not required for install of device
  • Soft gradual ON feature
  • California Title 20/24 compliant
Full Specs

Brand

Eaton

Model Number

DUL06P-C2
Volts
A measure of "electrical pressure" between two points. The voltage specification of an incandescent lamp is the electrical "pressure" required to drive it at its designed point. The "voltage" of a ballast (e.g. 120 V) refers to the line voltage coming from the power source and is connected to the ballast.
120

Line Voltage

120
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-4 to 158
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
2.783
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
2.1
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
4.36
Depth (in)
For fixtures and ballasts, depth is the measurement of total distance from front to back of the product in inches.
2.783
Finish
The decorative finish of the item.
Light Almond/Ivory/White

Mounting

Flush

Manufacturer Warranty

1 year limited
Maximum Load (Watts)
The maximum power that a product can handle.
600
Compatibility
Also known as load type, the bulb technology that a control can work with, such as LED, Fluorescent, CFL, Incandescent.
LED/Incandescent/Halogen/CFL/Fluorescent

Switch Mechanism

Slider/Rocker
Switch Function
The capability for controling lighting from one or more location. Single pole switches can be used for one location, 3-Way for two, and wireless controls might control multiple locations.
Single Pole/3-Way
Load Rating (Volts)
The voltage range that a control can handle.
120
Title 20 Compliant
California Building Energy Efficiency Standards for Residential and Non-Residential Buildings.
Yes
Title 24 Compliant
California Building Energy Efficiency Standards for Residential and Non-Residential Buildings.
Yes
Dimming
Dimming ballasts provide dimming capability when used with an appropriate controller and lamp.
Yes

Wallplate Included

no
