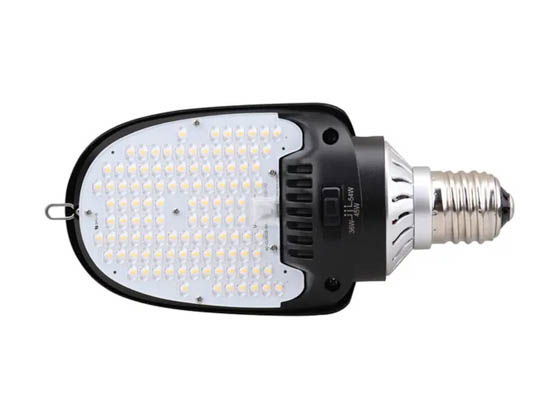

Commercial LED 54W Paddle Style LED Retrofit Lamp, Power Selectable, 5000K, E39 Base, DLC Listed

SKU: L54W5KHTCLC11 | Ordering Code: CLC11-54W-H2-E-50K | UPC: 850018508254

Commercial LED L54W5KHTCLC11 CLC11-54W-H2-E-50K 54W Paddle Style LED Retrofit Lamp, Power Selectable, 5000K, E39 Base, DLC Listed

Printer friendly

DLC
Listed
Wattage
Selectable

$59.99each

Add to Cart

Save to BulbTrack

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Add 4 to your cart to get free ground shipping *

Product Highlights

Estimated life of 45.7 years based on 3 hours use per day
No lead or mercury means easy and environmentally safe disposal
Adjustable wattage

Product Description–

This commercial-grade LED retrofit lamp is an energy-efficient, reliable upgrade for existing HID shoebox and floodlight fixtures This 54W paddle-style features selectable wattages to match illumination needs. With a 5000K daylight output, Type III distribution, rotatable 270° E39 base, and enclosed-fixture compatibility,

Tunable power via switch on the lamp - 36W / 45W / 54W
Ideal retofit for shoebox and flood light fixtures
Suitable for enclosed luminaires, minimum compatment dimensions 420 x 210 x 210MM
270° rotatable base
TYPE III light distribution
IP64 rated
120-277V driver
Black finish with aluminum housing and clear plastic lens
5 year limited warranty

Full Specs–

Brand	Commercial LED
Energy Used A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.	36/45/54 Watts
Volts A measure of "electrical pressure" between two points. The voltage specification of an incandescent lamp is the electrical "pressure" required to drive it at its designed point. The "voltage" of a ballast (e.g. 120 V) refers to the line voltage coming from the power source and is connected to the ballast.	120-277
Base The end (or ends) of the lamp that fits into the socket.	Mogul (E39)
Bulb Shape The description of the general appearance of a lamp/bulb consists of a letter(s) followed by a number. The letter indicates the shape of the bulb and the number relates to the diameter of the bulb in eighths of an inch. For example, a common household bulb is the A-19. The bulb is "A" shape and the diameter would be nineteen 8ths of an inch, or 2 3/8".	Paddle
Bulb Color The color of the light produced by a bulb	Bright White
CRI Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.	70
Color Temperature (Kelvin) An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).	5000
Brightness (Lumens) A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.	5220/6525/7830
Bulb Finish The surface finish of a bulb, which may affect the quality of the light emitted.	Clear
Bulb Technology The technology implemented by the bulb, e.g. incandescent, halogen, LED	LED
Average Rated Life (hr) A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.	50000

Operating Temperature (°F) The ambient temperature in which the product can safely operate.	-40 to 122
Beam Angle (°) The width of a light beam, expressed in degrees. The beam angle is often part of the ordering code for reflector lamps. For example, a 50PAR30/HIR/NFL25 is a 50-watt PAR30 narrow flood lamp with a beam angle of 25 degrees.	150
Bulb Power Type Defines how a lamp is powered, whether it needs a ballast or not, or can use either	Ballast Bypass
Length (in) Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.	9.56
Height (in) For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.	3.43
Diameter (in) Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.	4.49
Manufacturer Warranty	5 year limited
Wet Location Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.	Yes
Damp Location Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment	Yes
Rated for Fully Enclosed Fixtures Not all LED bulbs are suitable for use in enclosed fixtures, due to the amount of heat they generate. Rated bulbs have been tested and approved as safe for enclosed fixtures.	Yes
DLC Listing	S-HLEI65 Standard

Questions & Answers+

FAQ

What does DLC Listed mean?

DLC stands for Design Lights Consortium. DLC's primary focus is on developing and promoting energy-efficient lighting technologies that meet or exceed stringent performance standards. Through its Qualified Products List (QPL), DLC provides a comprehensive database of lighting fixtures that have been certified to meet DLC specifications.

To qualify for the DLC QPL, lighting fixtures must meet a variety of criteria including:

Energy efficiency: Fixtures must demonstrate superior energy performance compared to legacy lighting technologies.

Luminaire efficacy: The fixture's capability to convert electrical energy into light output must meet or exceed specified lumens per watt.

Light quality: The fixture must provide high quality light that is suitable for various applications and environments.

Controllability: Fixtures may be required to have built-in dimming or other control features to optimize energy use.

What does Wattage Selectable mean?

Wattage selectable technology in commercial lighting allows for flexible and efficient illumination by enabling the adjustment of a fixture's power output. This is typically achieved through a simple internal switch or driver that allows the user to select from multiple wattage options within a single fixture.

This technology enhances energy efficiency by allowing businesses to set a maximum energy usage limit based on the specific needs of a space, even though the fixture may be capable of a higher output. It also simplifies inventory management for contractors or maintenance departments. By offering multiple wattage options within a single fixture, businesses can reduce the number of different fixtures they need to stock, streamlining procurement and maintenance processes. Another key benefit of wattage selectable LED light fixtures is for building owners and managers that want to provide tenants with adequate lighting while also reducing their energy usage.
