Sorry, this product is not available to purchase.
- Ignites one High Pressure Sodium lamp
Product Description–

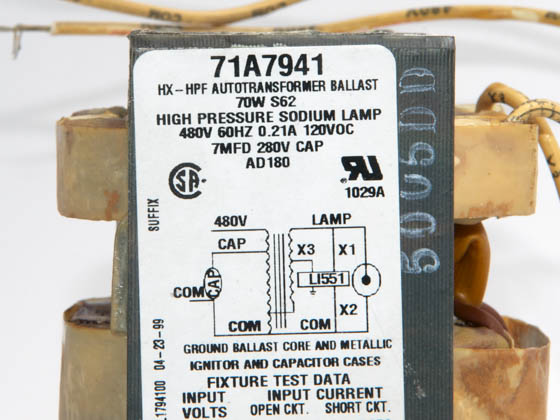

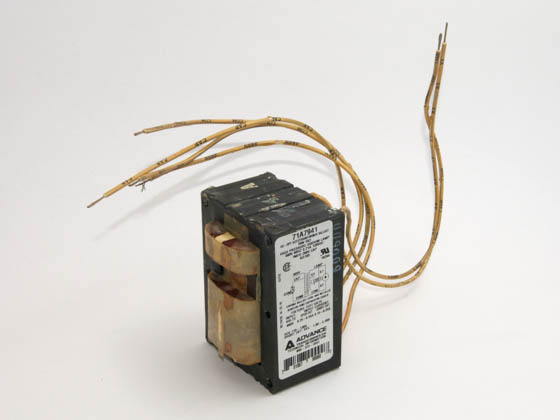

Advance HID Core and Coil Ballast and Capacitor Ignites One 70 Watt High Pressure Sodium (ANSI S62) Lamp of 480 Voltage. BRACKETS AND LAMP NOT INCLUDED
Full Specs–
Brand | Advance Transformer |
Input Volts | 480 |
Input Watts | 93 |
Number of Lamps | 1 |
Ballast Factor
The percentage of a lamp's rated lumen output that can be expected when operated on a specific commercially available ballast. For example, a ballast with a ballast factor of 0.93 will result in the lamps emitting 93% of their rated lumen output. A ballast with a lower ballast factor results in less light output and also generally consumes less power.
| 100% |
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
| 4 |
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
| 2.8 |
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
| 3.2 |
Power Factor | >90% |
Lamps by Wattage | 1x70W |
Ballast Lamp Type
The type of bulb the ballast can fire.
| High Pressure Sodium |
