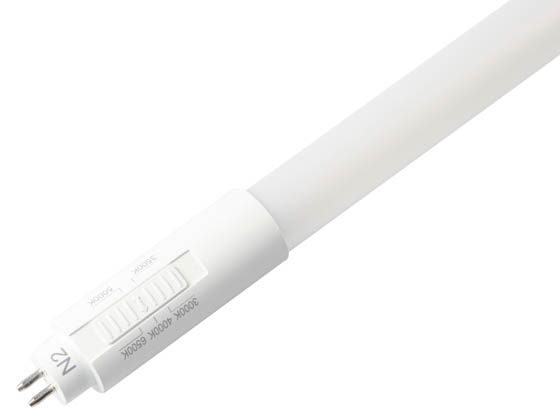

Satco 25 Watt 46" T5HO LED Lamp, Color Selectable, Ballast Bypass, Single or Double Ended Wiring

SKU: S11655 | Ordering Code: 25T5/LED/48-CCT/BP/HO/SE-DE | UPC: 045923116551

Printer friendly

DLC
Listed
NSF
Certified
Color
Selectable

$18.99each

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Order within the next 14 minutes to ship today

Free ground shipping on orders over $199*

Options

Length (in)

21.65 33.46 46

Product Highlights

Estimated life of 45.7 years based on 3 hours use per day
No lead or mercury means easy and environmentally safe disposal
Adjustable color

Product Description–

Satco 25 Watt 46" T5HO LED Lamp, Color Selectable, Ballast Bypass, Single or Double Ended Wiring

Color selectable via a switch on lamp
Choose from 3000K/3500K/4000K/5000K/6500K
Single or double ended wiring
120-277 volt
Type B ballast bypass
Enclosed fixture rated
IP20 and damp location rated

Full Specs–

Brand	Satco Products, Inc.
Energy Used A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.	25 Watts
Fluorescent Equivalent The total wattage of fluorescent lamps in a fixture that this fixture replaces.	54
Volts A measure of "electrical pressure" between two points. The voltage specification of an incandescent lamp is the electrical "pressure" required to drive it at its designed point. The "voltage" of a ballast (e.g. 120 V) refers to the line voltage coming from the power source and is connected to the ballast.	120-277
Base The end (or ends) of the lamp that fits into the socket.	Miniature Bipin
Wiring Wiring configuration a bulb can work with. Can be single-ended, double-ended or both.	Single or Double Ended
Bulb Shape The description of the general appearance of a lamp/bulb consists of a letter(s) followed by a number. The letter indicates the shape of the bulb and the number relates to the diameter of the bulb in eighths of an inch. For example, a common household bulb is the A-19. The bulb is "A" shape and the diameter would be nineteen 8ths of an inch, or 2 3/8".	T-5
Bulb Color The color of the light produced by a bulb	Soft White/Neutral White/Cool White/Bright White/Daylight White
CRI Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.	80
Color Temperature (Kelvin) An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).	3000/3500/4000/5000/6500
Lowest Color Temperature (Kelvin) The warmest color temperature that can be set for a color-tuneable product.	3000
Highest Color Temperature (Kelvin) The coolest color temperature that can be set for a color-tuneable product.	6500
Brightness (Lumens) A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.	3000/3450/3500/3600/3400
Bulb Finish The surface finish of a bulb, which may affect the quality of the light emitted.	Opaque

Bulb Technology The technology implemented by the bulb, e.g. incandescent, halogen, LED	LED
Average Rated Life (hr) A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.	50000
Operating Temperature (°F) The ambient temperature in which the product can safely operate.	-4 to 113
Beam Angle (°) The width of a light beam, expressed in degrees. The beam angle is often part of the ordering code for reflector lamps. For example, a 50PAR30/HIR/NFL25 is a 50-watt PAR30 narrow flood lamp with a beam angle of 25 degrees.	160
Bulb Power Type Defines how a lamp is powered, whether it needs a ballast or not, or can use either	Ballast Bypass
Length (in) Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.	46
Nominal Length (ft) The length to the nearest foot that linear bulbs or fixtures will fit.	4
Manufacturer Warranty	5 year limited
Damp Location Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment	Yes
Food Equipment Certification The NSF (National Science Foundation) establishes minimum food protection and sanitation requirements for the materials, design, fabrication, construction and performance of food handling and processing equipment. The ETL (Edison Testing Laboratories) Mark is proof of product compliance to North American safety standards.	NSF
Rated for Fully Enclosed Fixtures Not all LED bulbs are suitable for use in enclosed fixtures, due to the amount of heat they generate. Rated bulbs have been tested and approved as safe for enclosed fixtures.	Yes
Color Selectable Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.	Yes
DLC Listing	S-5B02FZ Standard

Questions & Answers+

FAQ

What does DLC Listed mean?

DLC stands for Design Lights Consortium. DLC's primary focus is on developing and promoting energy-efficient lighting technologies that meet or exceed stringent performance standards. Through its Qualified Products List (QPL), DLC provides a comprehensive database of lighting fixtures that have been certified to meet DLC specifications.

To qualify for the DLC QPL, lighting fixtures must meet a variety of criteria including:

Energy efficiency: Fixtures must demonstrate superior energy performance compared to legacy lighting technologies.

Luminaire efficacy: The fixture's capability to convert electrical energy into light output must meet or exceed specified lumens per watt.

Light quality: The fixture must provide high quality light that is suitable for various applications and environments.

Controllability: Fixtures may be required to have built-in dimming or other control features to optimize energy use.

What does Color Selectable mean?

Color selectable technology in commercial lighting allows users to adjust the color temperature of the light emitted by an LED bulb or fixture. This is typically achieved through the use of tunable white LEDs, which can produce a range of colors from warm white to cool daylight. A simple switch is used to set the bulb or fixture to the preferred color temperature. This flexibility provides a significant advantage over traditional lighting systems, which often have a fixed color temperature.

A primary benefit of color selectable lighting is its ability to enhance occupant comfort and well-being. Studies have shown that exposure to different color temperatures can have a significant impact on mood, alertness, and productivity. For example, warmer colors can create a more relaxed and inviting atmosphere, while cooler colors can promote alertness and focus. By allowing users to adjust the color temperature to their preference, color selectable lighting can create a more personalized lighting experience.

Color selectable technology offers a range of practical applications in commercial settings and by offering multiple color options within a single fixture, businesses can reduce the number of different fixtures they need to stock, streamlining procurement and maintenance processes. Another key benefit of color selectable LED light fixtures is for building owners and managers that want to provide tenants with options without the need to change out entire fixtures. Businesses and building owners can create more dynamic and adaptable lighting environments that meet the unique needs and preferences of their occupants.
