LED High Bay Linear Fixture Wattage (120/180/240/300W) and Color Selectable with Control Ready and Emergency Battery Backup Included

SKU: LHB-44987 | Ordering Code: LHB-300WDDKPDB

Value Brand LHB-44987 LHB-300WDDKPDB LED High Bay Linear Fixture Wattage (120/180/240/300W) and Color Selectable with Control Ready and Emergency Battery Backup Included
Value Brand LHB-44987 LHB-300WDDKPDB LED High Bay Linear Fixture Wattage (120/180/240/300W) and Color Selectable with Control Ready and Emergency Battery Backup IncludedValue Brand LHB-44987 LHB-300WDDKPDB LED High Bay Linear Fixture Wattage (120/180/240/300W) and Color Selectable with Control Ready and Emergency Battery Backup Included
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable
$298.89each
Fixture
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

This item does not ship outside the US

Order within the next 1 hour 41 minutes to ship today

This item qualifies for free ground shipping *

Options

Brightness (Lumens)
14000 19500 20000 25000 28000 30500 36000 42000

Product Highlights

  • Energy efficient replacement for a 250/400/750 watt HID bulb
  • Estimated life of 45.7 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Complete Your Solution

Product Description

This dimmable high bay LED fixturew is wattage selectable (120W/180W/240W/300W) and color selectable (4000K/5000K), It is equivalent up to a 8-lamp F54 T5 fluorescent fixture or a 10-lamp F32 T8 fluorescent fixture. This economical high bay is a cost-effective and quality solution for warehouses, distribution centers and manufacturing facilities. Delivers the high lumen output associated with traditional fluorescent and HID high bays at a fraction of the wattage.

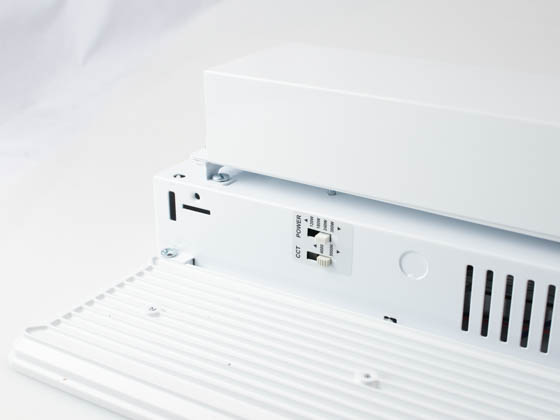

  • 4-way wattage and 2-way color selectable
    • Wattage selectable (120W/180W/240W/300W)
    • Color selectable (4000K/5000K)

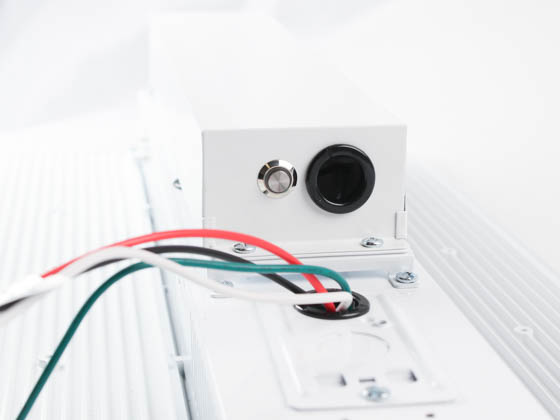

  • Includes control ready sensor port
    • Plug-In programmable PIR motion and daylight harvesting sensor MSANT12VPH01 (sold separately)
    • Remote control for programming sensor RC-100 (sold separately)
  • Adjustable settings with sensor and remote
    • Brightness 70/80/90/100% (default 100%)
    • Hold time 8 settings between 10sec to 60min (default 5min)
    • Occupancy sensitivity 20/50/75/100% (default 100%)
    • Stand-by dim level 0/10/30/50% (default 20%)
    • Stand-by time 1min/30min/60min/infinite (default 30 min)
    • Daylight threshold 10lux/30lux/50lux/100lux/500lux/disable (default disabled)
  • 25W 90min emergency battery backup included
  • Prismatic diffuser lens
  • One set of steel wire cables included
  • Operating temperature -40ºF to 122ºF
  • 0-10V dimming

Product Documents

Full Specs

Brand

Value Brand

Model Number

LHB-300WDDKPDB
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
120/180/240/300 Watts
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
250/400/750
Fluorescent Equivalent
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
324/432/540/648

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
4000
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
20000/28000/36000/42000
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
50000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-40 to 122
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
26.77
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
11.02
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
1.65
Finish
The decorative finish of the item.
White

Housing

Aluminum alloy

Mounting

Chain included

Manufacturer Warranty

5 year limited
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Battery Backup
Has a backup battery to allow it to continue functioning in case of power failure.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes
Controls Ready
Indicates whether a fixture is capable of taking an integrated motion or light control, although the control is not included in the product itself.
Yes

DLC Listing

S-RGFNR6 Premium
