LED High Bay Panel Fixtures

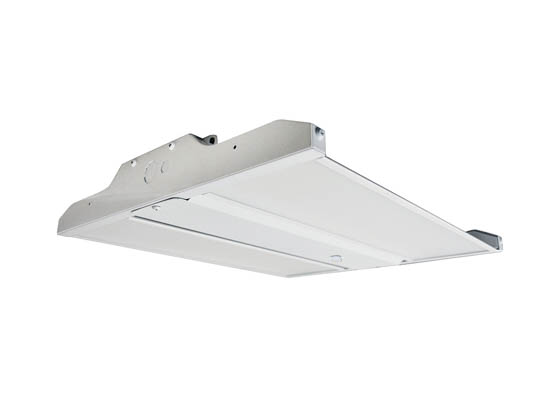

MaxLite Dimmable 115 Watt LED High Bay Fixture, Color Selectable, 400 Watt HID Equivalent, C-Max Compatible

SKU: 108432 | Ordering Code: HL3-115UF-CSCR  | UPC: 767627031199

$94.99each
Fixture
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Add 2 to your cart to get free ground shipping *

Options

Brightness (Lumens)
17250 17365 23250 23405 34500 34730

Product Highlights

  • Energy efficient replacement for a 400 watt HID bulb
  • Estimated life of 91.3 years based on 3 hours use per day
  • Adjustable color
Description
  • DLC
    Premium
  • Color
    Selectable

MaxLite dimmable 115 watt color selectable (4000K/5000K) LED linear high bay fixture is equivalent to a 6x54W T5HO fluorescent fixture or a 400 watt HID. This economical high bay is a cost-effective and quality solution for warehouses, distribution centers and manufacturing facilities. Measuring just 17.3" x 15" x 2.6", the LED luminaire delivers the high lumen output associated with traditional fluorescent and HID high bays in a form factor one-quarter the size.

V hook and 40" knotted chain included.

  • Controls ready - Can be paired with Maxlite's C-Max control node # 105565 for Basic PIR motion sensing/daylight harvesting or Network node # 105905 for Network PIR motion sensing /daylight harvesting for grouping and advanced functionality - Both sold separately
  • Use remote control # 105567 for easy Basic commissioning with node # 105565 - sold separately
  • 0-10V dimming - Compatible with Lutron NTSTV-DV-WH and DVSTV-WH, and Legrand TSD4FBL3PTC and RH4FBL3PTC dimmers
  • 2kV surge protection
  • Color selectable 4000K/5000K; 5000K default setting
  • Translucent lens standard to minimize glare
  • Lens material is PMMA (polymethylmethacrylate)
  • DLC Premium
  • 10 year limited warranty with labor allowance
    • Product must be rated for the application; operated ≤ 16 hours per day; in ambient -4°F to 77°F. If ambient temperatures fall outside the -4°F to 77°F range the product is warrantied for 5 years
    • Labor Allowance - Up to $25 per unit; labor allowance up to $500 per unit available for an additional purchase. Contact a Bulbs.com Lighting Specialist for details
    • It is not a requirement to register the warranty to receive warranty coverage, but you must register the warranty if you want to be eligible to receive the labor allowance associated with the 10 year limited warranty

Product Documents

Full Specs

Brand

MaxLite

Product Line

C-Max

Model Number

HL3-115UF-CSCR
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
115 Watts
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
400
Fluorescent Equivalent
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
324

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
4000
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
17250/17365
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
100000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-4 to 122
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
17.3
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
15
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
2.6
Finish
The decorative finish of the item.
White

Housing

Galvanized steel

Mounting

V-hook and chain included

Warranty

10 year limited
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
DLC Listing
Approved by the DesignLights Consortium, a collaboration of utility companies and regional energy efficiency organizations. Approved products meet the consortium's standards for ensuring high-quality, energy-efficient lighting design. There are three categories, Standard, Premium and Horticultural, plus Luna for light-pollution minimization.
Premium
DLC Code
Code identifying the product in DLC (DesignLights Consortium) listings.
S-3704JU
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
