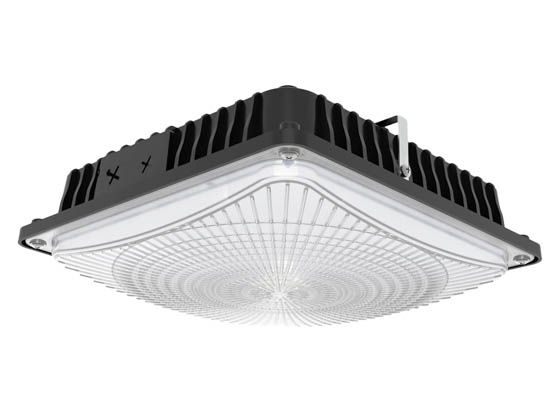

NaturaLED LED Canopy Fixture Wattage (28/45/60W) & Color Selectable

SKU: 9545 | Ordering Code: FX10SCM60SW/8CCT3/BK  | UPC: 844366095450

Sorry, this product is not available to purchase.

Product Highlights

  • Energy efficient replacement for a 250 watt HID bulb
  • Estimated life of 45.7 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Description
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable
  • On
    sale

NaturaLED dimmable wattage selectable (28W/45W/60W) and color selectable (3000K/4000K/5000K) LED Canopy fixture is equivalent up to a 250 watt HID fixture. This fixture has a rugged die-cast aluminum housing and shatter-resistant polycarbonate prismatic lens that withstands outdoor environments. The outer surface is treated with durable power coating to provide resistant to corrosion, rust and weathering.

  • Microwave motion sensor with bi-level dimming SEN-HB001VCR-1 (sold separate)
  • Dust-proof and includes three 1/2" knockouts on three sides

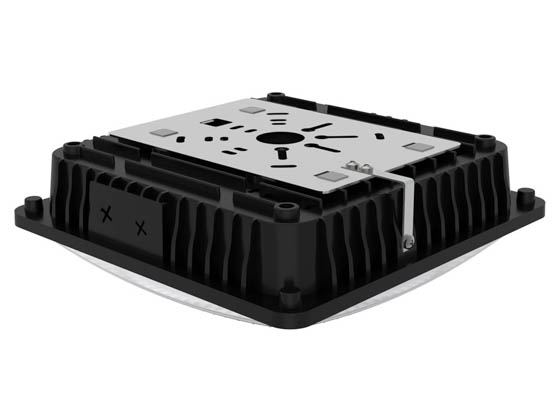

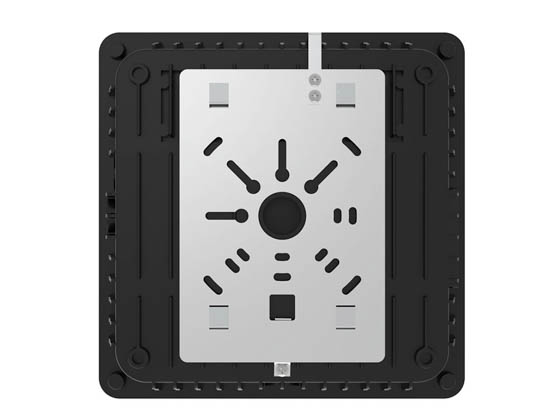

  • Supports both pendant mounting (3/4" NPT thread) and direct surface mounting, ceiling or wall. Can be mounted on multiple types of J-boxes
  • 4kV surge protection
  • Shatter-resistant polycarbonate prismatic lens
  • 0-10V dimming

Product Documents

Full Specs

Brand

NaturaLED

Model Number

FX10SCM60SW/8CCT3/BK
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
28/45/60 Watts
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
250

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3000/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3000
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
3640/5850/7800
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
50000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-40 to 122
Beam Angle (°)
The width of a light beam, expressed in degrees. The beam angle is often part of the ordering code for reflector lamps. For example, a 50PAR30/HIR/NFL25 is a 50-watt PAR30 narrow flood lamp with a beam angle of 25 degrees.
160
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
9.6
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
9.6
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
3.2
Finish
The decorative finish of the item.
Black

Housing

Powder-coated painted aluminum

Mounting

Pendant or J-Box

Manufacturer Warranty

5 year limited
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes

DLC Listing

S-16ZQX3 Premium
