Euri Lighting Dimmable 48" LED Utility Wrap Fixture, Wattage and Color Selectable

SKU: ESW4-48W103sw | Ordering Code: ESW4-48W103sw  | UPC: 811174033257

Sorry, this product is not available to purchase.

Product Highlights

  • Estimated life of 91.3 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Description
  • DLC
    Listed
  • Wattage
    Selectable
  • Color
    Selectable

Euri Lighting's LED Utility Wrap fixture is wattage selectable (32W/40W/48W) and kelvin selectable (3500K/4000K/5000K). A cost effective dimmable LED Utility Wrap fixture.

Applications - Utility lighting, parking garage and stairwell lighting

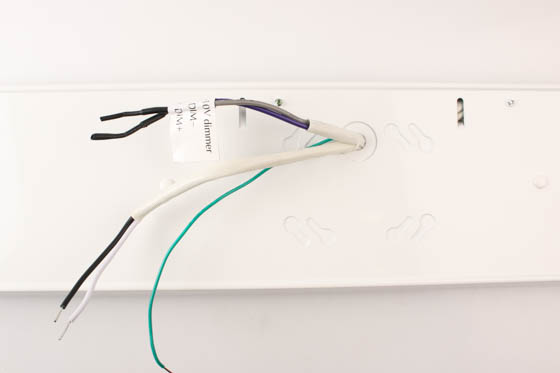

  • Class II driver with 0-10V dimming. Compatible with Lutron NTSTV-DV-WH and DVSTV-WH, and Legrand/Wattstopper TSD4FBL3PTC and RH4FBL3PTC dimmers
  • Ceiling or wall mounted
  • Steel housing
  • Frosted plastic lens
  • Electrostatic paint pre-assembly

Product Documents

Full Specs

Brand

Euri Lighting

Model Number

ESW4-48W103sw
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
32/40/48 Watts
Fluorescent Equivalent
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
96

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3500/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3500
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
3680/4600/5520
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
100000
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
48
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
5.3
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
2.1
Finish
The decorative finish of the item.
White

Housing

Steel

Mounting

Surface or suspended

Warranty

5 year limited
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
DLC Listing
Approved by the DesignLights Consortium, a collaboration of utility companies and regional energy efficiency organizations. Approved products meet the consortium's standards for ensuring high-quality, energy-efficient lighting design. There are three categories, Standard, Premium and Horticultural, plus Luna for light-pollution minimization.
Standard
DLC Code
Code identifying the product in DLC (DesignLights Consortium) listings.
PLXZNCHKEJ0A
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes
