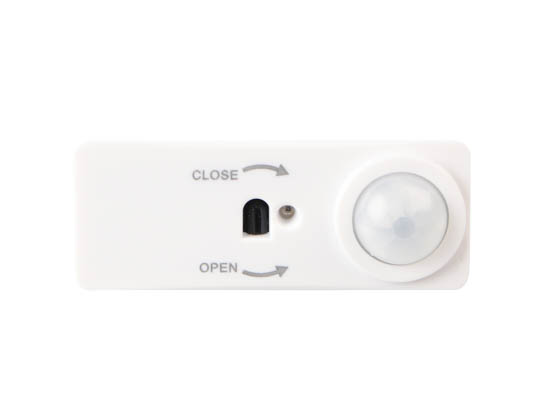

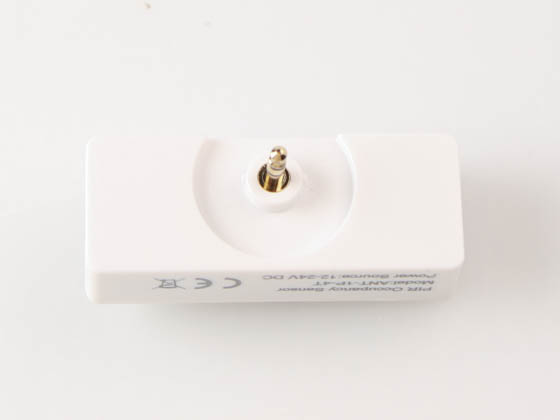

ATG Electronics PIR Motion and Daylight Harvesting Sensor Remote Controlled Node for DUO Control Ready Fixtures

SKU: ANT-1P-4T | Ordering Code: ANT-1P-4T

$29.99each
Control Node
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Add 7 to your cart to get free ground shipping *

Complete Your Solution

Subtotal: $174.96

Add 4 Items to Cart

Product Description–

The ATG Electronics ANT-1P-4T is passive infrared occupancy bi-level sensor that also provides daylight harvest control.  All controls parameters are adjustable via the RC-100 remote control.

  • Compatible ATG Electronics Fixtures
    • DUO 2X2 flat panel, FPBL22-16W-T1-RU-S
    • DUO 2X4 flat panel, FPBL24-30W-T1-RU-S
  • Remote control RC-100 is required for programming (1 needed per site)
  • Adjustable settings
    • Brightness 70/80/90/100% (default 100%)
    • Hold time 8 settings between 10sec to 60min (default 5min)
    • Occupancy sensitivity 20/50/75/100% (default 100%)
    • Stand-by dim level 0/10/30/50% (default 20%)
    • Stand-by time 1min/30min/60min/infinite (default 30 min)
    • Daylight threshold 10lux/30lux/50lux/100lux/500lux/disable (default disabled)
  • Easy to install with Single Pin/Phone Jack style connection using pre-installed fixture receptacle
  • Recommended mounting height: 8ft - 15ft

Product Documents

Full Specs–

Brand

ATG Electronics

Model Number

ANT-1P-4T
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-30 to 130
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
2.3
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
0.8
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
0.8

Manufacturer Warranty

5 year limited

Photocell

Yes

Motion Sensor

Yes
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Title 20 Compliant
California Building Energy Efficiency Standards for Residential and Non-Residential Buildings.
Yes
Dusk to Dawn
Indicates that a lamp will self-activate when light levels dip below a certain level.
Yes
