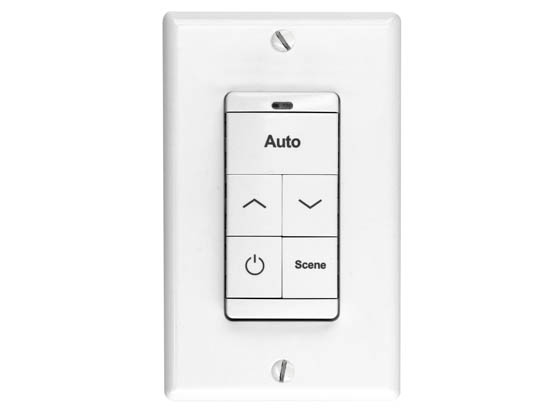

Maxlite C-Max Bluetooth Wireless Network Wall Switch for Maxlite C-Max Control Ready Fixtures

SKU: 106118 | Ordering Code: WNS-W  | UPC: 767627013867

Sorry, this product is not available to purchase.
Description
  • On
    sale

Maxlite's C-Max Network Bluetooth Wireless Wall Switch provides personal control allowing users to set and adjust dimming light levels for individual or a group of lights.

  • Easy commissioning with C-Max App (IOS or Android)
  • Ability to create and link three scenes per wall switch
  • DC powered (2x AAA batteries not included)
  • Can be surface or junction box mounted
  • Operating Voltage: 3V
  • Flame Rating: UL 94 V-O
  • Wireless Standard: BLE 4.2 MESH IEEE 802.15.1
  • Cybersecurity: UL1376 Bronze Rating Pending
  • Encryption: AES 128-bit
  • Mesh Range: 100 ft. node-to-node and 50 ft. node-to-device (Commissioning)

Product Documents

Full Specs

Brand

MaxLite

Product Line

C-Max

Model Number

WNS-W
Operating Temperature (°F)

Operating Temperature (°F)

The ambient temperature in which the product can safely operate.

14 to 113
Width (in)

Width (in)

For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.

1.8
Height (in)

Height (in)

For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.

4.1
Depth (in)

Depth (in)

For fixtures and ballasts, depth is the measurement of total distance from front to back of the product in inches.

1.3
Finish

Finish

The decorative finish of the item.

White

Warranty

5 year limited
