Sorry, this product is not available to purchase.
- Estimated life of 91.3 years based on 3 hours use per day
Lighting Facts Per Bulb |
| Brightness 31259 lumens |
|
Estimated Yearly Energy Cost $24.09
Based on 3 hrs/day, 11¢/kWh
Cost depends on rates and use
|
|
Life
Based on 3 hrs/day91.3 years
|
|
Light Appearance
WarmCool
5000 K
|
| Energy Used200 watts |
DLC
Premium
NSF
Certified

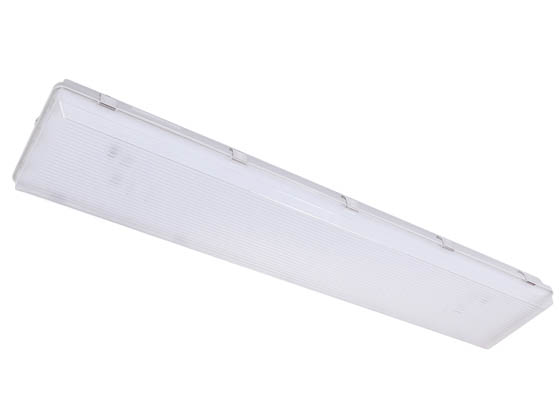

Eiko dimmable NSF rated 4' Vapor Proof LED High Bay fixture is equivalent to a 6-lamp T5HO fluorescent fixture. Designed to be used in environments subject to high levels of moisture and dust. Ideal for parking garages, barns utility lighting and warehouses.
- Stainless steel clips
- Cable gland included for sealing power cable entry
- Impact resistant polycarbonate lens
- Polycarbonate gray housing
- Surface mounting clips and v-hooks included
- Wet location, IP66 rated
- 120-347V
- Surge protection: 6kV
- 0-10V dimming
Brand | Eiko |
Model Number | VPHB1-42005-3 |
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
| 200 Watts |
Fluorescent Equivalent
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
| 432 |
Line Voltage | 120-347 |
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
| 80 |
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
| 5000 |
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
| 31259 |
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
| 100000 |
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
| -40 to 104 |
Bulb Type Supplied
Type of bulb supplied with the fixture
| LED |
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
| 50 |
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
| 10.4 |
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
| 4.5 |
Nominal Length (ft)
The length to the nearest foot that linear bulbs or fixtures will fit.
| 4 |
Finish
The decorative finish of the item.
| Gray |
Housing | Polycarbonate |
Mounting | Surface |
Manufacturer Warranty | 5 year limited |
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
| Yes |
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
| Yes |
Vapor Proof | Yes |
Food Equipment Certification
The NSF (National Science Foundation) establishes minimum food protection and sanitation requirements for the materials, design, fabrication, construction and performance of food handling and processing equipment. The ETL (Edison Testing Laboratories) Mark is proof of product compliance to North American safety standards.
| NSF |
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
| Yes |
DLC Listing | PZVCSF53 Premium |
