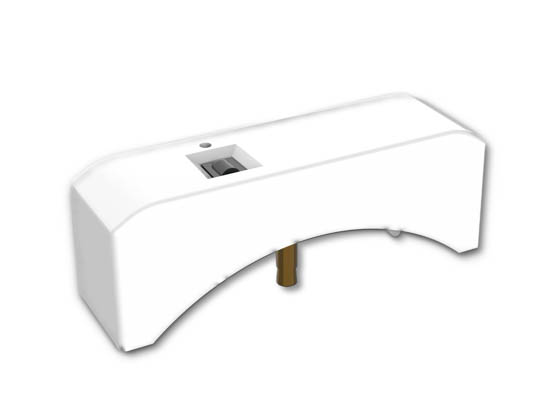

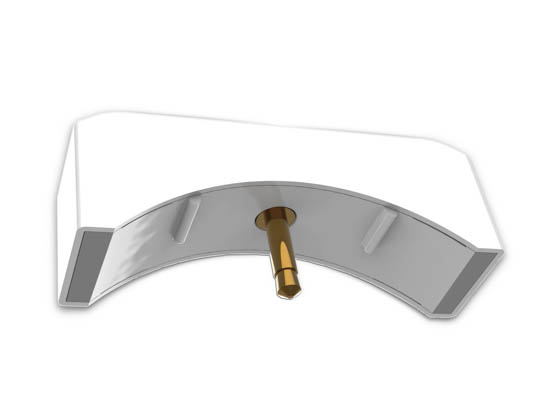

Archipelago Microwave Motion Sensor with Daylight Harvesting for use with LLSN Vanguard Series Strip Fixture (Remote RM-HT/06S required for programming)

Archipelago Microwave Motion Sensor with Daylight Harvesting for use with LLSN Vanguard Series Strip Fixture (Remote RM-HT/06S required for programming)

• Fixture compatibility
  • Vanguard Linear Strip Fixture
    • LLSN3W-xx-2S3-H
    • LLSN3W-xx-4S3-H
    • LLSN3W-xx-8S3-H
• Remote Control Settings

  • Motion Sensitivity 25/50/75/100% (default 100%)
  • Hold Time 8 settings between 5sec-30min (default 5 seconds)
  • Bi-level Standy Dim Level 10//20/30/50% (default 10%)
  • Bi-level Standby Dim Time 8 settings betwen off-60min (default off)
  • Photocell Sensitivity disabled/2/10/30/50/80/120Lux (default disabled)

Please note, to program this sensor it is required to be used with the remote SKU RM-HT/06S
