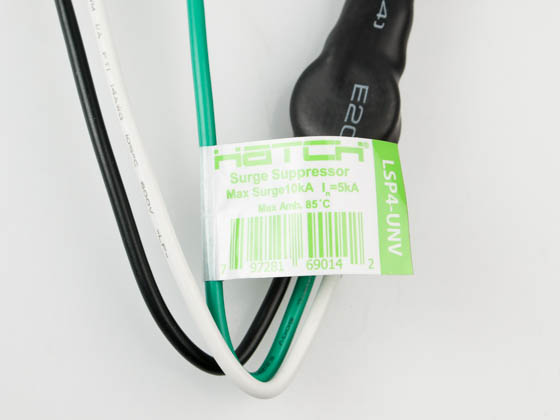

Hatch Surge Protector Type 5 SPD 10kV/10kA Max 120-277 IP67

SKU: LSP4-UNV | Ordering Code: LSP4-UNV  | UPC: 797281690142

Sorry, this product is not available to purchase.
Description

Hatch Surge Protector Type 5 SPD 10kV 10kA Max 120-277V Indoor/Outdoor IP67

  • Use with LED drivers and fixtures along with electronic flourescent and HID ballasts
  • IEEE C62.41 Catagory C High Exposure
  • Maximum 10,000v and 10,000amps
  • 120-277v
  • Type 5 SPD
  • SnapLock moutning to a 1/2 electrical knockout
  • 3 wire; sinlge split phase
  • IP67 rated
Full Specs

Brand

Hatch Transformers

Input Volts

120-277
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
4.53
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
0.87
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
0.59
Electrical Connection
The manner in which a fixture connects to its power supply, either hard-wired or plug-in.
3 wire

Gauge

14
Maximum Current (Amps)
The maximum amount of Amps that a ballast can hold.
10000
Max Voltage
The maximum voltage that a meter can measure.
10000
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
