DLC
Listed
Sorry, this product is not available to purchase.
- Estimated life of 54.8 years based on 3 hours use per day
Product Description–
Lighting Facts Per Bulb |
| Brightness 4671 lumens |
|
Estimated Yearly Energy Cost $4.49
Based on 3 hrs/day, 11¢/kWh
Cost depends on rates and use
|
|
Life
Based on 3 hrs/day54.8 years
|
|
Light Appearance
WarmCool
5000 K
|
| Energy Used37.3 watts |

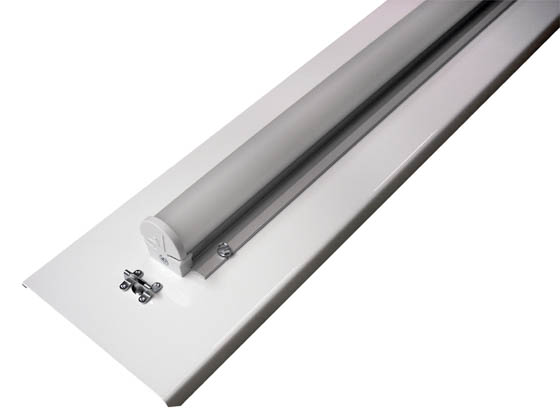

Universal Everline 4' LED strip retrofit kit is an energy efficient LED alternative to traditional linear fluorescent strip fixtures. Not only does it offer energy savings, it also helps reduce maintenance costs due to its long lifetime. Equivalent to a two-lamp F32T8 fluorescent.
Kit includes LED lensed pre-mounted module, Everline 0-10V dimmable LED driver pre-mounted, wiring, mounting hardware and installation instructions. Suitable for a 4' non-lensed strip fixture, minimum wiring compartment dimensions 2.5" depth and 2" width.
- Retrofits a 4 ft. fluorescent strip fixture to LED
- Fast and easy to install
- No redesign or revised layout needed
- Universal mounting compatible with most strip manufacturers
- Panel is 23 gauge painted steel
- Diffuser provides broad, even light distribution
- 0-10V dimmable LED driver - Compatible with Lutron DVSTV-WH dimmer
- Suitable for dry and damp locations
Full Specs–
Brand | Everline |
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
| 37.3 Watts |
Fluorescent Equivalent
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
| 64 |
Line Voltage | 120-277 |
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
| 82 |
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
| 5000 |
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
| 4671 |
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
| 60000 |
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
| -4 to 100 |
Bulb Type Supplied
Type of bulb supplied with the fixture
| LED |
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
| 48 |
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
| 4.6 |
Mounting | Mounts to existing fluorescent strip housing |
Manufacturer Warranty | 7 year limited |
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
| Yes |
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
| Yes |
DLC Listing | PTX3NCSN Standard |
