- Estimated life of 68.5 years based on 3 hours use per day
- Adjustable color
Subtotal: $131.17
Add 3 Items to Cart
Product Description–

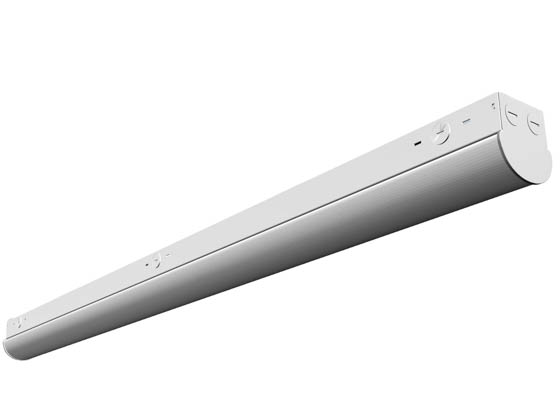

Archipelago Lighting dimmable 40 watt 48" Color Selectable (3500K/4000K/5000K) LED strip fixtures combine high performance LEDs and highly-engineered optics. Ideal for garages, workshops, storage/utility areas, task and general area lighting.
Archipelago remote # LLSN-RMH needed to program the sensor.
- Integrated sensor for motion-activated on/off and step-dimming
- Equivalent to a 96 watt fluorescent fixture
- Locking latches and mounting hinges included
- Linkable design suitable for uniform end-to-end light run
- Thermally isolated driver for advanced heat dissipation
- Suitable for surface mounting
- All surfaces are powder coated after fabrication
- Stylish frosted acrylic lens featuring bright, even illumination with no pixelation
- Double stamped aluminum housing
- 0-10V dimming - Compatible with Lutron NTSTV-DV-WH and DVSTV-WH, and Legrand/Wattstopper TSF4FBL3PTC and RH4FBL3PTC dimmers
Full Specs–
Brand | Archipelago Lighting |
Model Number | LLSN40-XX-4 (S3) |
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
| 40 Watts |
Fluorescent Equivalent
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
| 96 |
Line Voltage | 120-277 |
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
| 84 |
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
| 3500/4000/5000 |
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
| 3500 |
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
| 5000 |
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
| 5000 |
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
| 75000 |
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
| -10 to 130 |
Bulb Type Supplied
Type of bulb supplied with the fixture
| LED |
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
| 48 |
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
| 2.3 |
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
| 3.4 |
Housing | Durable stamped aluminum |
Motion Sensor | Yes |
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
| Yes |
DLC Listings | PLYIQP3Q1OGL Premium, PM7DT17D Standard |
