LED Retrofit Strip Lighting Kits

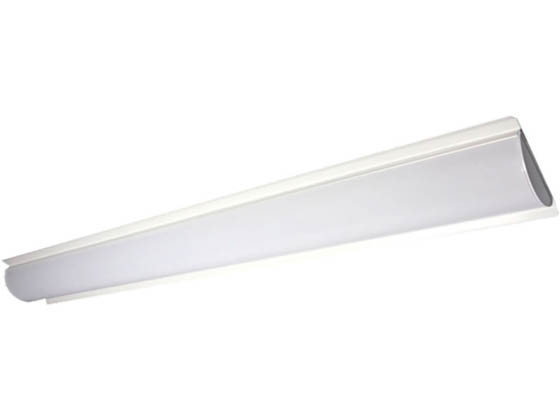

NaturaLED Dimmable 25 Watt 4' 5000K LED Strip Retrofit Kit

SKU: 9347 | Ordering Code: LED-FXRSL25/48FR/850/MV  | UPC: 844366093470

$76.19each
Kit
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

This item does not ship outside the US

Order within the next 2 hours 5 minutes to ship today

Add 2 to your cart to get free ground shipping *

Options

Color Temperature (Kelvin)
Color Temperature Guide 4000 5000

Product Highlights

  • Estimated life of 45.7 years based on 3 hours use per day
Description

Lighting Facts Per Bulb

Brightness 3967 lumens
Estimated Yearly Energy Cost $3.01
Based on 3 hrs/day, 11¢/kWh
Cost depends on rates and use
Life
Based on 3 hrs/day45.7 years
Light Appearance
WarmCool
5000 K
Energy Used25 watts

NaturaLED 4' LED strip retrofit kit is an energy efficient LED alternative to traditional linear fluorescent strip fixtures. Not only does it offer energy savings, it also helps reduce maintenance costs due to its long lifetime. Mounts onto virtually any existing fluorescent channel, replacing existing 4' fluorescent strips and industrial fixtures to LED. Equivalent to a two-lamp F32T8 fluorescent.

Kit includes LED lensed pre-mounted module, 0-10V dimmable LED driver pre-mounted, mounting hardware and installation instructions.

  • Retrofits a 4 ft. fluorescent strip fixture to LED
  • Fast and easy to install
  • No redesign or revised layout needed
  • Universal mounting compatible with most strip manufacturers - fits up to 5.25" of T8 or T12 wide strips
  • Diffuser provides broad, even light distribution
  • Round frosted acrylic lens and steel housing
  • 0-10V dimmable LED driver - Compatible with Lutron DVSTV-WH and NTSTV-DV-WH dimmers
  • Suitable for dry and damp locations
Full Specs

Brand

NaturaLED

Model Number

LED-FXRSL25/48FR/850/MV
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
25 Watts
Fluorescent Equivalent
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
64

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
3967
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
50000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-22 to 122
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
48
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
6.2
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
1.9

Mounting

Mounts to existing fluorescent strip fixture

Warranty

5 year limited
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
